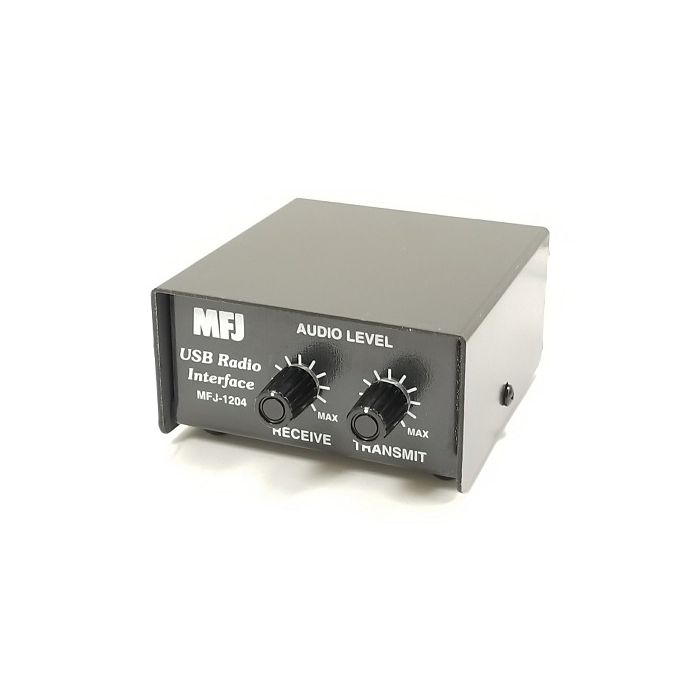

Here are just a few of the MFJ-1204's advanced features:
Full USB connectivity
Powered by USB port
Dedicated on-board sound card
Quick plug-and-play connectivity
Incredibly easy to adjust and operate
Works with all digital modes
Dozens of free downloadable programs
Innovative circuitry eliminates delay control
Complete line of interface cables
Low cost, small size, light weight
Perfect for base station, portable, or "go-kit" applications
Initial no-solder jumpers take only a second to install, and once in place, they're locked in until you decide to change radios. To hook up, simply connect the MFJ-1204 to any free USB port on your computer and plug the appropriate interface cable into the back of your radio. That's it! No need to disconnect the microphone or fumble around with multiple patch cords to get started.
Convenient front-panel controls set Receive and Transmit levels and there's no front-panel "Delay" to adjust because the MFJ-1204 controls your radio's PTT line using a unique internal detector circuit. Transmit and receive using traditional modes such as CW, RTTY, SSTV, AMTOR, PSK31, and EchoLink or explore newer modes like MT-63, WINMOR, WSPR, and WSJT-X. In fact, new experimental modes are emerging all the time. If your radio can pass the signal and computer can run the mode's online software, MFJ-1204 sound card and computer will handle the rest! Just select a cable configured for your radio, plug it in, and go. The signal path between the radio and computer is completely isolated against ground loops and common-mode noise.
Compatability (includes but not limited to):
- Several Yaesu HT's such as the FT-60R, FT-50R and VX-8GR
