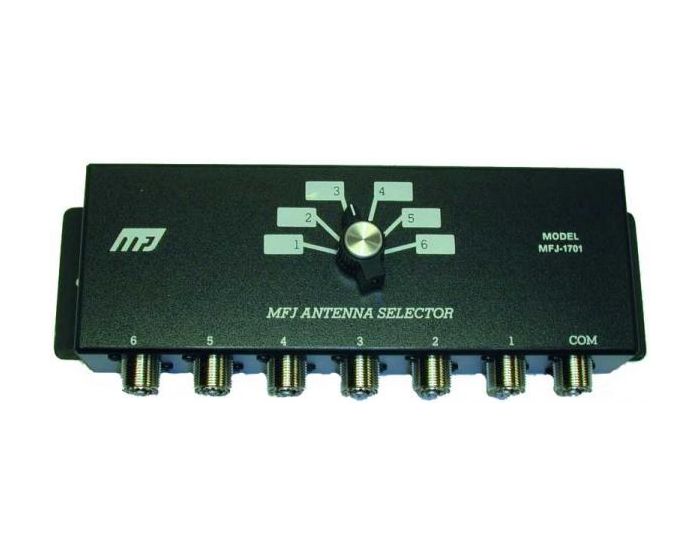

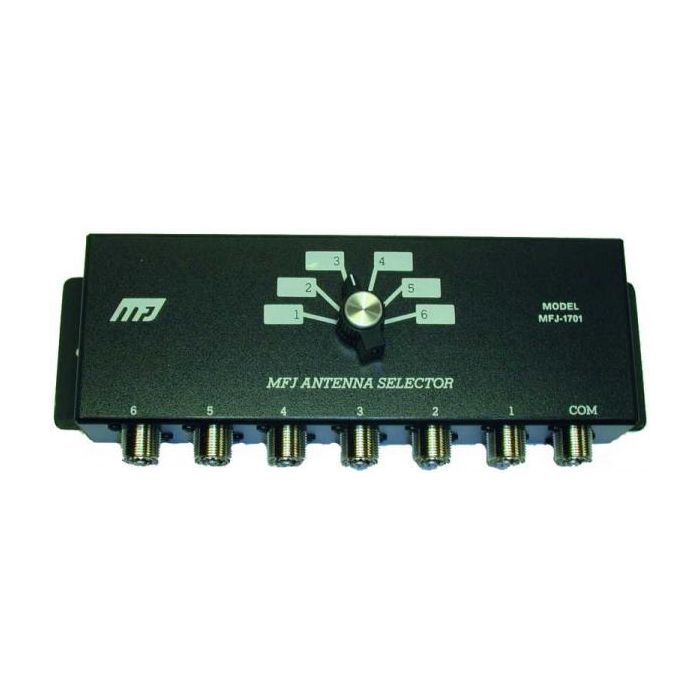

MFJ-1701 Six Position HF Antenna Switch

Looking for an easy and efficient way to switch between antennas or transceivers without disconnecting your coaxial line? Look no further than the MFJ-1701 Six Position HF Antenna Switch.

This antenna switch allows you to select one of six antennas, all of which function within the 1.8-30 MHz range. Unused terminals are automatically grounded for static, lightning surge, and RF protection, while SO-239 connectors ensure a secure and reliable connection.

The MFJ-1701 can handle up to 2kW PEP or 1kW CW and can be used for both 50 to 75 ohm systems, making it a versatile addition to any ham radio setup. Plus, with MFJ's famous one-year limited warranty, you can trust that your antenna switch will be repaired or replaced should any issues arise.

Upgrade your ham radio setup with the MFJ-1701 Six Position HF Antenna Switch, and enjoy seamless switching between antennas or transceivers with ease. Order yours today from GigaParts! Michael Brigmond MFJ Brand Manager GigaParts 4/17/23 UPC: 650619002102

6 Position HF Antenna Switch

  • Supports 1.8 - 30 MHz
  • Unused terminals are grounded
  • SO-239 connectors
  • Handles up to 2kW PEP or 1 kW CW
  • 50 - 75 Ohm loads

Features:

  • Six position antenna switch
  • Select 1 of 6 antennas
  • Covers 1.8 - 30 MHz frequency range
  • Unused terminals are grounded
  • SO-239 connectors
  • Supports 2kW PEP, 1 kW CW
  • 50 - 75 Ohm loads
  • One-year limited warranty from MFJ

Benefits:

  • Easy and efficient switching between antennas or transceivers
  • Versatile use for both 50 to 75 ohm systems
  • Automatic grounding for static, lightning surge, and RF protection
  • Secure and reliable connections with SO-239 connectors
  • Wide frequency range coverage for maximum functionality
  • High power handling capability
  • Peace of mind with MFJ's one-year limited warranty
Specification Value
Brand MFJ
Manufacturer's Part Number MFJ-1701
Part Type Antenna Switches, Manual
Product Line MFJ 1701 Antenna Switches
GigaParts Number ZMF-1701
UPC 650619002102
Antenna Switch Positions 6-port
Antenna Switch Connector Type UHF female, SO-239
Switch Impedance 50 ohms
Switch Insertion Loss Less than 0.20 dB
Switch Port Isolation (Crosstalk) More than 60 dB
All Ports Grounded Position No
Power Rating (0 to 30 MHz) 2,000 W PEP/1,000 W CW


6 Position HF Antenna Switch

  • Supports 1.8 - 30 MHz
  • Unused terminals are grounded
  • SO-239 connectors
  • Handles up to 2kW PEP or 1 kW CW
  • 50 - 75 Ohm loads
