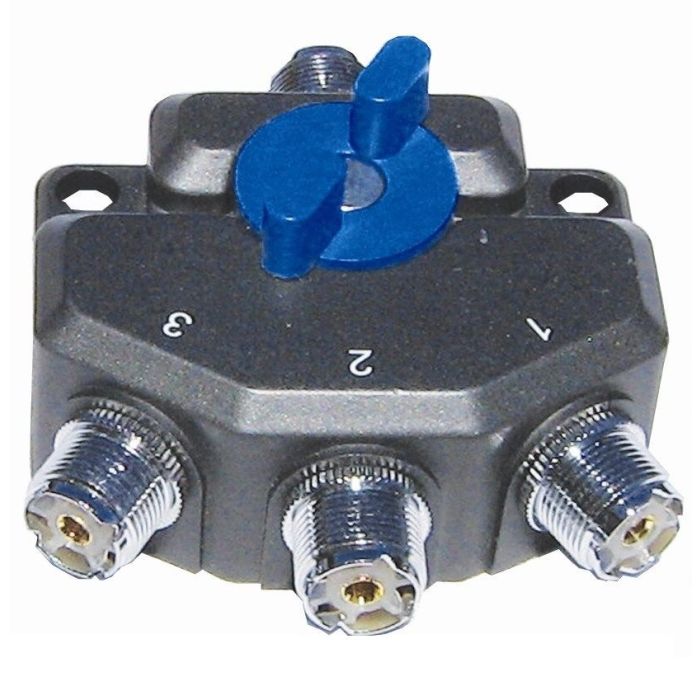

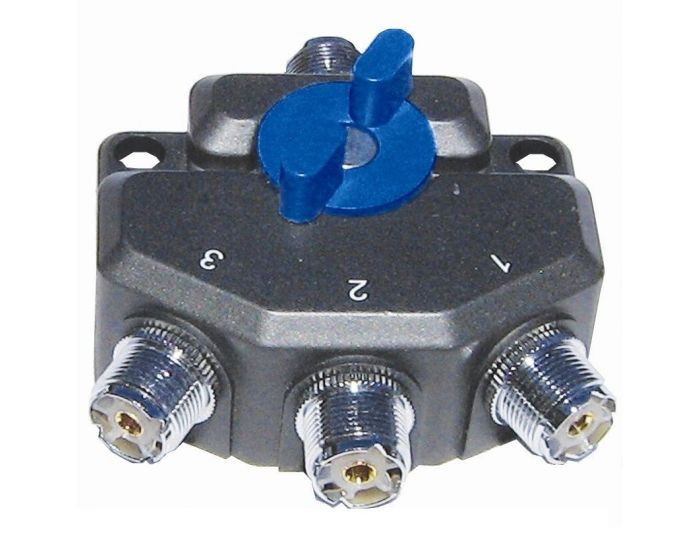

MFJ-2703 Three Position Antenna Switch 800 MHz - 1500 Watts SO-239 Connectors
SKU
ZMF-2703
$103.98
Ready to Ship!
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:
MFJ’s Rhinos™
tough, durable 2, 3, and 4 position antenna switches have gold plated flanges and connector contacts that provide low VSWR and low insertion loss.
A rock-solid, sturdy, die-cast design gives up to an excellent 70 dB isolation. These switches are build like a rhino, tough inside and out! Asuperior internal design lets them work for you for a long lifespan.
Rhinos™ handle power up to 2 kW. Operating frequency ranges from DC to 3 GHZ with less than a 1.2:1 SWR. Asuper compact size lets you put them anywhere. Handy premade mounting holes.
| Brand: | MFJ |
| Manufacturer's Part Number: | MFJ-2703 |
| GigaParts Number: | ZMF-2703 |
| UPC: | 650619020748 |
| Part Type: | Antenna Switches, Manual |
| Product Line: | MFJ Rhinos Antenna Switches |
| Antenna Switch Positions: | 3-port |
| Antenna Switch Connector Type: | UHF female, SO-239 |
| Switch Impedance: | 50 ohms |
| Switch Insertion Loss: | Less than 0.10 dB |
| Switch Port Isolation (Crosstalk): | More than 60 dB |
| All Ports Grounded Position: | No |
| Power Rating (0 to 30 MHz): | 2,000 W |
| Notes: | May also be used in 75 ohm applications |
