MFJ Window Antenna Feedthru, Basic Panel, W/SO-239 - MFJ-4601

No free freight
SKU
ZMF-4601
$89.95
Add to Wish List

This item is currently out of stock with no available ETA. We will not be accepting orders until the item is back in stock or once a reliable ETA is available.

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Weather-proof window feedthrough panels bring HF/VHF/UHF antennas, balanced lines, random wire antennas, ground, DC/AC power and Rotator/Antenna Switch Cables into your hamshack without drilling through walls.

 MFJ Weather-Proof Antenna Feedthrough Panels mounts in your window sill. They let you bring all your antenna connections into your hamshack without drilling holes through walls. Simply place in window sill and close window. One cut customizes it for any window up to 48 inches. Use horizontally or vertically.  Edges sealed by weather-stripping. Seals and insulates against all weather conditions. Gives years of trouble-free service.

MFJ has decided to make a slight change to our wooden feed through panel products. This change will add more quality and lifetime to our feed through panel products.

 MFJ has upgraded the wooden feed through panel base material to a real Western Red Cedar. This highly revered, durable wood is naturally resistant to rot, decay and insects, so it will last longer and require much less maintenance.

Western Red Cedar is pitch and resin free so it can accept a wide range of beautiful finishes or our customers can choose to leave the wood in its natural beautiful finish.

 All are ¾" x 3 ½" x 48" , except for MFJ-4605, which is ¾" x 7" x 48" .

NOTE: The customer cuts it down to their preferred size. The minimum would be 15 inches because the plate is at that point.


UPC: 650619004717

MFJ Antenna Window Feedthrough Panels

Weather-proof window feedthrough panels bring HF/VHF/UHF antennas, balanced lines, random wire antennas, ground, DC/AC power and Rotator/Antenna Switch Cables into your hamshack without drilling through walls.

MFJ Weather-Proof Antenna Feedthrough Panels mounts in your window sill. They let you bring all your antenna connections into your hamshack without drilling holes through walls.

Real Western Red Cedar wood is naturally resistant to rot, decay and insects -- lasts longer, maintenance-free. Pitch and resin free for a wide range of beautiful finishes or leave it in its naturally beautiful raw finish.

Simply place in window sill and close window. Edges sealed by weather-stripping. Seals and insulates against all weather conditions. Gives years of trouble-free service. All are ¾" x 3 ½" x 48" , except for MFJ-4605, which is ¾" x 7" x 48" . Inside/outside stainless steel plates bond all coax shields together to ground connection. Stainless steel ground post brings outside ground connection inside.

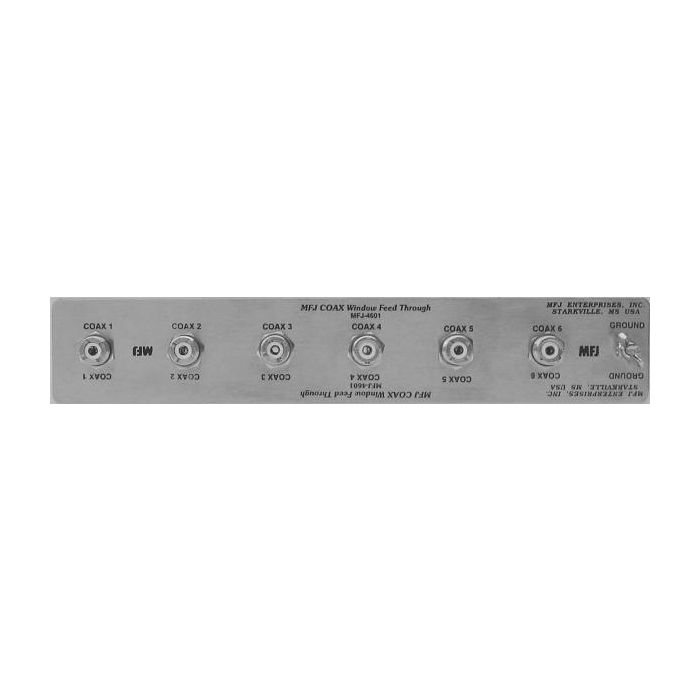

Six Models to choose from MFJ-4601 - For coax fed antennas. - The MFJ-4601 has six high quality Teflon® SO-239 connectors for HF/VHF/UHF coax fed antennas and a stainless steel ground post. Handles full 1500 Watt legal limit.

  • MFJ-4600
  • MFJ-4601
  • MFJ-4602
  • MFJ-4603
  • MFJ-4604
  • MFJ-4605
Brand: MFJ
Manufacturer's Part Number: MFJ-4601
GigaParts Number: ZMF-4601
Part Type: Coaxial Connector Panels
Product Line: MFJ Universal Window Feedthrough Panels
SO-239 Connectors: Yes
Number of SO-239 Connectors: 6
Balanced Line Terminals: No
Random Wire Terminal: No
Power Terminals: No
Type N Connector: No
F-Type Connector: No
Control Line Connector Included: No
Connector Panel Width: 48.000 in.
Connector Panel Height: 3.500 in.
Connector Panel Depth: 0.750 in.
Quantity: Sold individually.

Notes: Panel provides six UHF feed-through connections. Includes grounding terminal.
