MFJ Remote Antenna Switch 2-pos 18-150MHz - MFJ-4712
This MFJ 2-position remote antenna switch uses a single coaxial feedline to feed two antennas, DC power and control signals -- no power or control cable needed.
It’s perfect for switching from HF to VHF -- no more unplugging coaxial lines from your antennas just to switch frequency -- a quick switch does it for you.
The MFJ-4712
- Covers 1.8 MHz-150 MHz
- Handles 1500 Watts.
- Impedance is 50-75 Ohms.

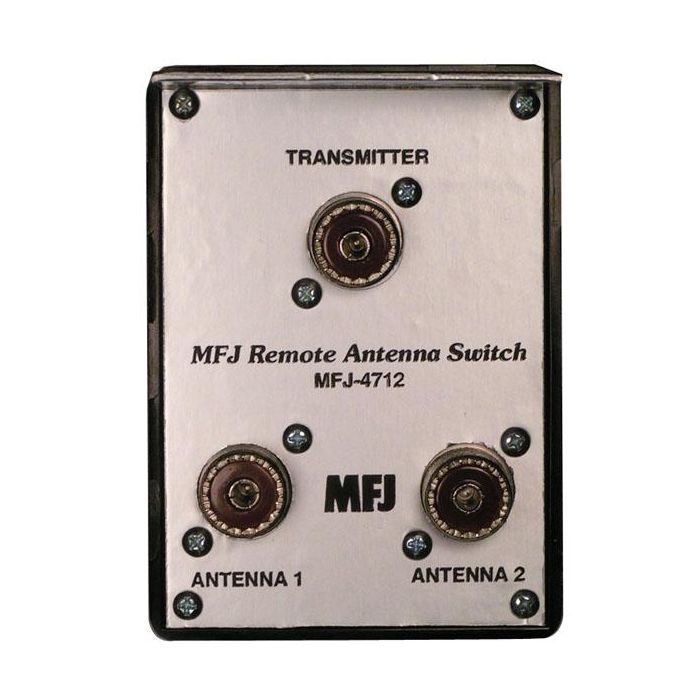

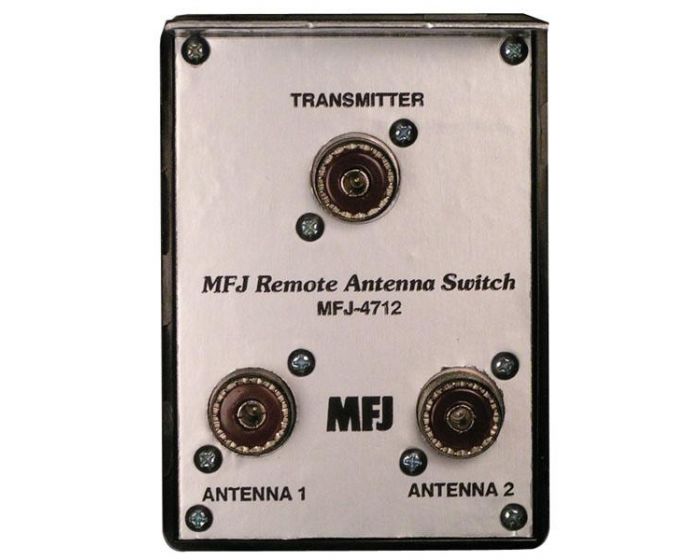

The compact 4W x 2 5/8H x 1 1/2D inch Outside Switch Box is fully enclosed and weather protected.
It also has three quality Teflon(R) SO-239 connectors for transmitter, antenna one and antenna two.
It uses a Stainless steel 1 ½” tall bracket with a U-bolt for masts up to 1 ½” O.D.
Inside remote control is 2 ¼ W x 2 ½ H x 1 ¼ in.
