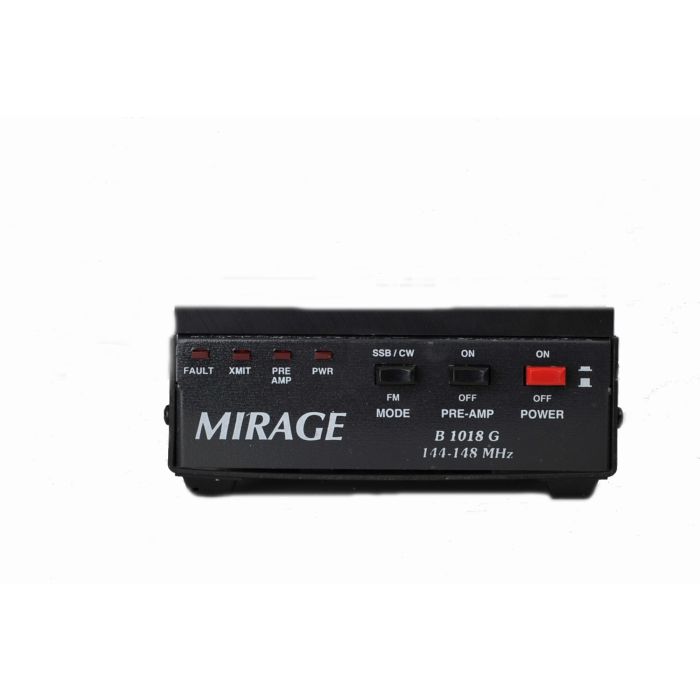

Mirage VHF AMP 10w in 160W out, FM/SSB/CW, GFET - B-1018-G

SKU
ZMR-B-1018-G
$759.95
Add to Wish List

This item is currently out of stock with no available ETA. We will not be accepting orders until the item is back in stock or once a reliable ETA is available.

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Mirage 10w in 160W out, FM/SSB/CW, GFET

Input Power Range: .25 - 15.
I (MAX) at 13.8 Volts: 25.
Weight Pounds: 5.
Size WxHxD inches: 12x3x5.5.
PreAmp Gain: 20 dB.
Typical Power Out for Watts in:
.25: 15.
0.5: 30.
1: 60.
2: 100.
3: 130.
5: 150.
6: 153.
8: 155.
10: 160.
15: 160+.

Input Power Range: .25 - 15. I (MAX) at 13.8 Volts: 25. Weight Pounds: 5. Size WxHxD inches: 12x3x5.5. PreAmp Gain: 20 dB. Typical Power Out for Watts in: .25: 15. 0.5: 30. 1: 60. 2: 100. 3: 130. 5: 150. 6: 153. 8: 155. 10: 160. 15: 160+.



MIRAGE 160 Watts on 2 Meters

Power Curve - typical output power in Watts

Watts In 0.25 0.5 3 5 8 10 15 25 35 50
B-1018-G Watts out 25 50 140 150 160 160
B-2518-G Watts out 5 7 40 60 80 100 125 160 160 160
B-5018-G Watts out   2 15 25 40 50 70 100 130

160
