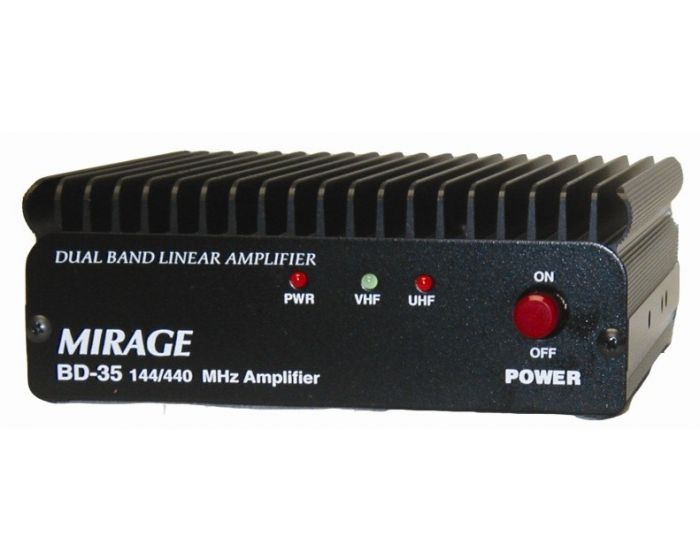

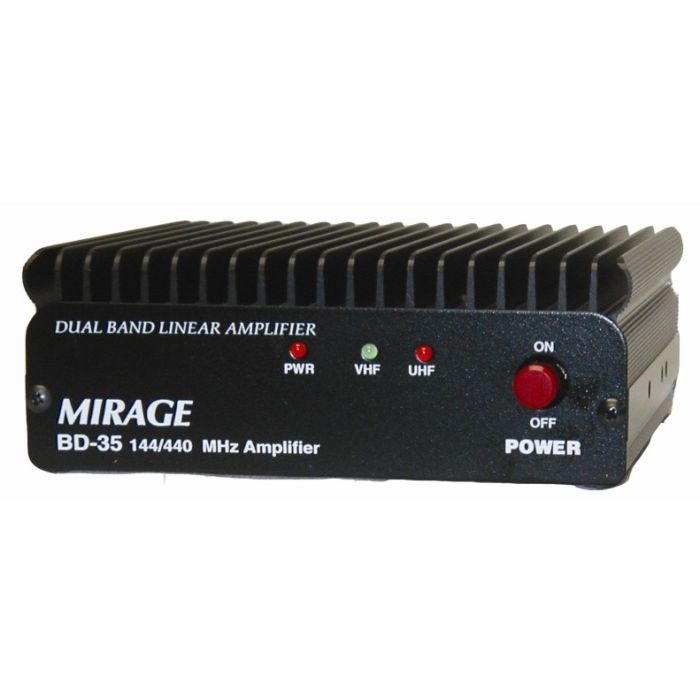

Mirage BD-35 4W in 45/35W Out Dual Band Amplifier
2M/70CM/VHF/UHF/144/440Mhz
Looking for a way to turn your handheld into a powerful mobile or base transceiver? Look no further than the Mirage BD-35 Dual-Band HT Amplifier! This amplifier is designed to boost your 2M/70cm handheld to become a much more powerful mobile or base transceiver, with 45 Watts output on 2 Meters or 35 Watts output on 440 MHz, with just 4 Watts input. That's 50% more power on 2 Meters and 75% more power on 440 MHz than our nearest competitor.
The BD-35 is now D-STAR compatible and features Mirage's exclusive FullDuplex Amp™ feature that lets you talk on one band and listen on another band at the same time, just like a phone conversation with your compatible HT. Plus, it has built-in Reverse Polarity Protection to save your amp if you accidentally connect the power backwards. With automatic RF sensing keying, no extra wiring is needed. Just hook up the power and coax cables and go!
The BD-35 features auto band selection, on-air LEDs, and has one SO-239 connector for your dual-band radio and one for your dual-band antenna. It works with HTs that have up to 8 watts output and draws 7 Amps at 13.8 VDC. Compact at 5" W x 1 ½" H x 5" D, this amplifier comes with a free mobile bracket for added convenience. Get your hands on the Mirage BD-35 Dual-Band HT Amplifier and take your handheld to the next level! Michael Brigmond Channel Manager GigaParts Mirage 4/6/23
Dual band VHF/UHF Amplifier
Great for use with dual band handheld talkies.
Specifications:
- Frequency: 144 - 148 & 430 - 450 MHz
- RF Input: 333mW - 7W
- RF Output:
144-148: up to 45W
430-450: up to 35W - Modes: FM
- Supply Voltage: 12- 15V DC
- Supply Current: 7A (typical)
- Fuse: 8A
Mirage Dual Band BD-35
45 Watts Output on 2 Meters 35 Watts output on 440 MHz
- New! D*STAR COMPATIBLE!
- Reverse Polarity Protection
- Free Mobile Bracket Included
- Works with all majorbrand Handhelds up to 8 Watts
- Auto RFsense T/R switch
Add this MIRAGE BD-35 dual band amp and boost your handheld to a much more powerful mobile or base - 45 Watts on 2 Meters or 35 Watts on 440 MHz! Get 35 Watts out with just 4 Watts in! BD-35 is now D-STAR compatible! MIRAGE's exclusive FullDuplex Amp lets you talk on a band and listen on another band at the same time -- just like a phone conversation (requires compatible HT).
- Features auto band selection
- Reverse polarity protection
- On-air leds
- Single connector for dual band radios/antennas
- Free mobile bracket and more!
- Works with HTs to 7 Watts.
- Compact 5" W x 1 ½" H x 5" D.
- Draws 7 Amps at 13.8 VDC.
- This amplifier works for FM only, cannot be used for SSB.
Dual band VHF/UHF Amplifier
| MIRAGE Dual Band 2-Meter / 440 MHz Amplifier for HTs - Typical Power Curve | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Watts In | 0.25 | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| BD-35 Watts Out (2 Meters) | 10 | 18 | 30 | 40 | 45 | 45 | 45 | 45+ | 45+ | 45+ |
| BD-35 Watts Out (440 MHz) | 4 | 10 | 16 | 26 | 32 | 35 | 35 | 35+ | 35+ | 35+ |
Great for use with dual band handheld talkies.
Specifications:
- Frequency:144 - 148 & 430 - 450 MHz
- RF Input:333mW - 7W
- RF Output:
- 144-148: up to 45W
- 430-450: up to 35W
- Modes:FM
- Supply Voltage:12- 15V DC
- Supply Current:7A (typical)
- Fuse:8A
