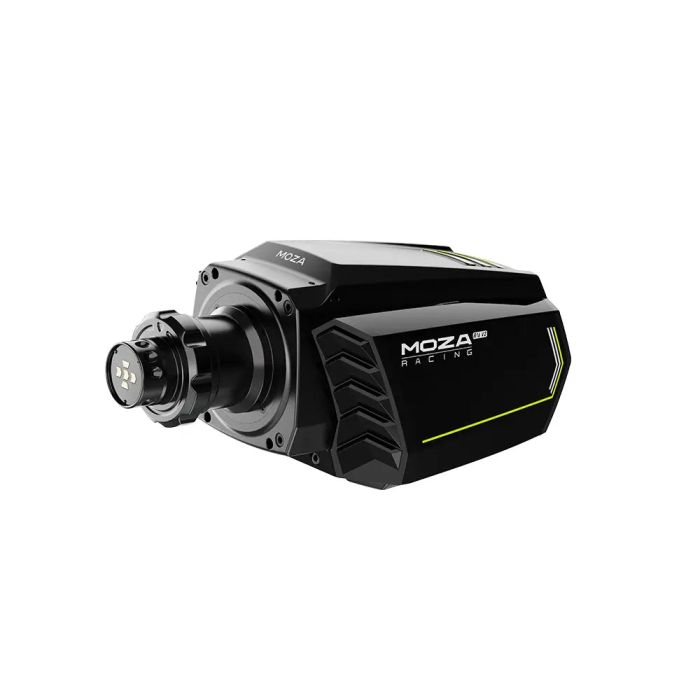

R16 Wheel Base
The MOZA R16 V2 delivers an uncompromising sim racing experience with 16Nm of direct drive torque, a 21-bit magnetic encoder, and a high-performance slanted pole servo motor. Built with an aviation-grade aluminum body and powered by the advanced NexGen 4.0 force feedback algorithm, the R16 V2 offers unmatched precision, smoothness, and realism for competitive sim racers.
Key Features:
- 21-Bit Magnetic Encoder With 280MHz High-Performance Processor:
- Divides each full rotation into 2,097,152 precise steps.
- Delivers microscopic 0.00017° resolution.
- Enables ultra-smooth control feel and instant response.
- Reproduces exceptionally detailed force feedback.
- High-Performance Slanted Pole Servo Motor:
- Race-grade Performance for Sim Racing
- Innovative Segmented Rotor Design
- Asymmetric segmented skew design Significantly reduces cogging torque & EM vibration Near-silent operation at all speeds
- High Torque Density
- Optimized slot-fill copper windings High-permeability silicon steel core NdFeB permanent magnets for maximum output
- 18-Slot/16-Pole Configuration
- Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback.
- Delivers precise and detailed steering response
- Wide Torque Range
- Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off
- 16Nm of Direct Drive Power: With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.
- Carbon Fiber Wrapped Rotor:
- Automotive-grade rotor protection.
- Effectively suppresses eddy current losses.
- Superior thermal management for sustained performance.
- NexGen 4.0 Force Feedback Algorithm:
- Enhanced Dynamic Feedback
- More refined and detailed force feedback.
- Sharper, more defined curbs and rumble strip sensations.
- Instant response to weight shifts and tire slip.
- New cogging torque compensation for ultra-smooth steering.
- Sturdy All-aluminum Body: The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.
- Cloud-based Mobile App Control: Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
