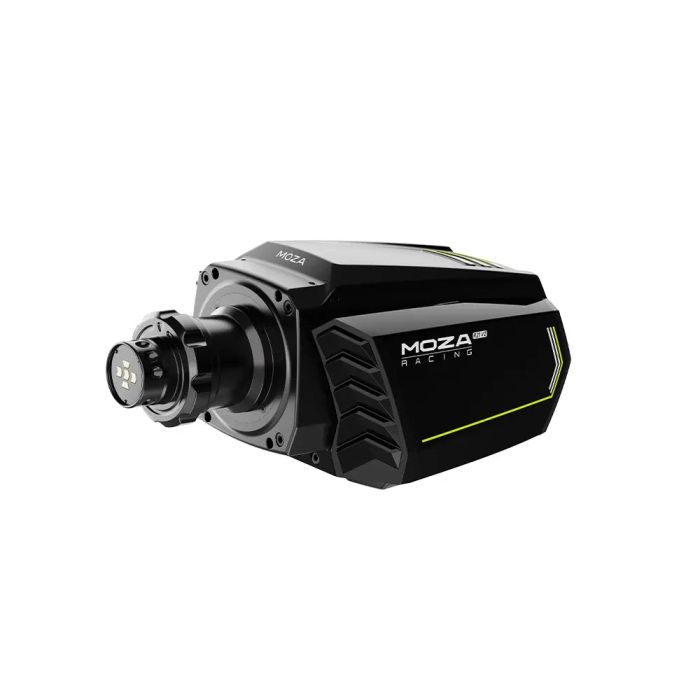

R21 Wheel Base
With 21Nm of peak torque—30% more than similar models—the R21 V2 delivers ultra-precise, immersive racing powered by a carbon-slanted pole servo motor. A triple-staggered rotor design ensures smooth, vibration-free operation, while a 21-bit encoder and 280MHz processor accurately capture every movement. Wrapped in a sleek aluminum body and tuned via the MOZA Pit House App, it’s built for serious racers.
Key Features:
- 21Nm of Consistent Torque: With 21Nm of power behind the R21 and a carbon fiber slanted pole servo motor, feel everything modern racing cars have to offer. Every bump, slip, and slide is delivered with exceptional clarity and smoothness, for unbeatable, class-leading immersion.
- Carbon Fiber Wrapped Rotor:
- Automotive-grade rotor protection.
- Effectively suppresses eddy current losses.
- Superior thermal management for sustained performance.
- 21-Bit Magnetic Encoder With 280MHz High-Performance Processor:
- Divides each full rotation into 2,097,152 precise steps.
- Delivers microscopic 0.00017° resolution.
- Enables ultra-smooth control feel and instant response.
- Reproduces exceptionally detailed force feedback.
- High-Performance Slanted Pole Servo Motor:
- Race-grade Performance for Sim Racing
- Innovative Segmented Rotor Design
- Asymmetric segmented skew design Significantly reduces cogging torque & EM vibration Near-silent operation at all speeds
- High Torque Density
- Optimized slot-fill copper windings High-permeability silicon steel core NdFeB permanent magnets for maximum output
- 18-Slot/16-Pole Configuration
- Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback.
- Delivers precise and detailed steering response
- Wide Torque Range
- Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off
- Six Unique Approaches to Direct Drive Design: Developed by experts in the electric motor field, the R21 motor utilizes 6 unique design approaches to ensure a smooth racing experience. V-shaped struts and fractional slot-concentrated windings are used to ensure maximum torque without notchiness. The R21 sports a 30% larger torque output than other similar models.
- NexGen 4.0 Force Feedback Algorithm:
- Enhanced Dynamic Feedback
- More refined and detailed force feedback.
- Sharper, more defined curbs and rumble strip sensations.
- Instant response to weight shifts and tire slip.
- New cogging torque compensation for ultra-smooth steering.
- Sturdy All-aluminum Body: The R21 is made of aluminum alloy, giving the base a rock-solid feel and weight.
- Cloud-based Mobile App Control: Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.
