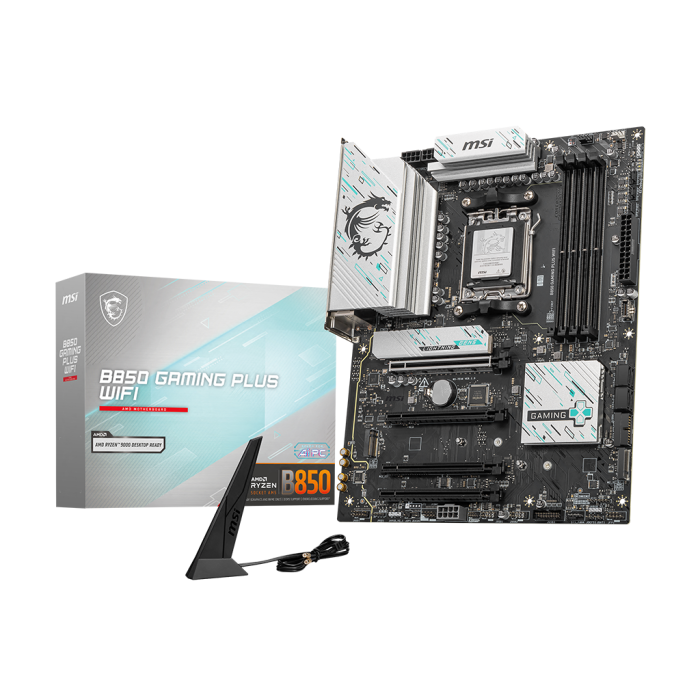

MSI B850 GAMING PLUS WIFI Gaming ATX DDR5 AM5 Motherboard - B850GPW

Name: MSI B850 GAMING PLUS WIFI Gaming ATX DDR5 AM5 Motherboard - B850GPW
Brand: MSI
SKU: MB1728
Price: 209.99 USD
Availability: InStock

SKU: MB1728

Availability:

In stock

$209.99

Free Shipping

Description

Specifications

Feature	Specification
Operating System	Support for Windows® 11 64-bit
Manufacturer Number	B850 GAMING PLUS WIFI
Product Condition	New
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B850 Chipset
CPU Socket	Socket AM5
Form Factor	ATX Form Factor
Memory	4 x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
LAN	Realtek® 8126VB 5G LAN
Wireless LAN	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth	Supports Bluetooth® 5.4, MLO, 4KQAM
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Multi-GPU	-
Storage	1 x M.2 Gen5 x4 128Gbps slot 1 x M.2 Gen4 x4 64Gbps slot 1 x M.2 Gen4 x2 32Gbps slot 4 x SATA 6Gbps ports
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
RAID	Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
I/O (Rear)	Clear CMOS Button USB 10Gbps (Type-A) USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button DisplayPort USB 10Gbps (Type-C) USB 10Gbps (Type-C) USB 5Gbps (Type-A) S/PDIF-OUT
Expansion Slots	1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot 2 x PCIe 3.0 x1 slots
USB (Front)	4 x USB 5Gbps Type A 1 x USB 5Gbps Type C 4 x USB 2.0
USB (Rear)	1 x USB 5Gbps Type A 1 x USB 10Gbps Type A 2 x USB 10Gbps Type C 4 x USB 2.0
TYPE-C PORT	1 x USB 5Gbps Type C (Front) 2 x USB 10Gbps Type C (Rear)
Internal Connectors	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan 1 x ARGB+FAN Header (JAF_1) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 5Gbps Type C ports
Dimensions	12.00" x 9.60"
Manufacturer Warranty	3 Year
