| Operating System |
Support for Windows® 11 64-bit |
| Manufacturer Number |

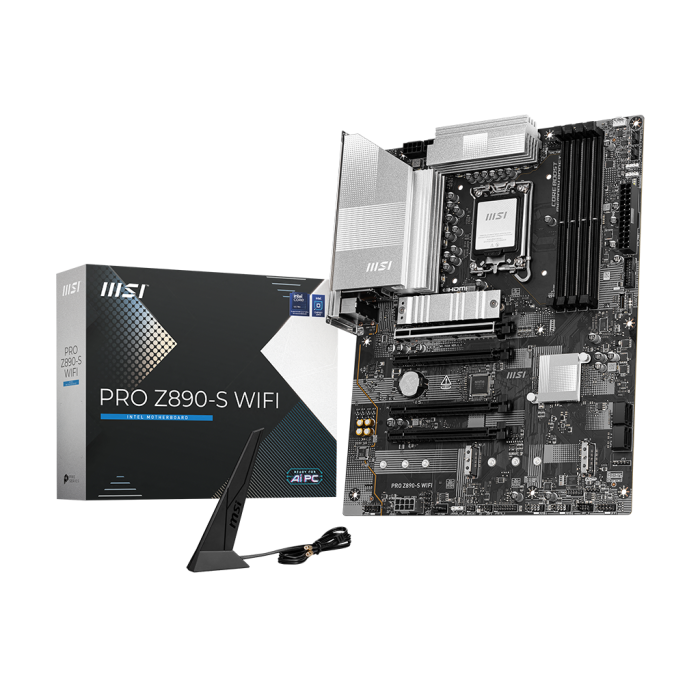

PRO Z890-S WIFI |
| Product Condition |
New |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851 |
| Chipset |
INTEL Z890 |
| CPU Socket |
LGA 1851 |
| Form Factor |
ATX Form Factor |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
1DPC 1R Max speed up to 8600+ MT/s
1DPC 2R Max speed up to 7200+ MT/s
2DPC 1R Max speed up to 4800+ MT/s
2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM |
| LAN |
Realtek® 8125D 2.5Gbps LAN |
| Wireless LAN |
Intel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| Bluetooth |
Supports Bluetooth® 5.4**, MLO, 4KQAM
6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Storage |
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Please refer to the manual for M.2 SSD heatsink restrictions. |
| Onboard Graphics |
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices |
| I/O (Rear) |
DisplayPort
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 20Gbps Type-C
USB 5Gbps Type-A |
| Expansion Slots |
4x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| USB (Front) |
4x USB 2.0
2x USB 5Gbps Type A
1x USB 20Gbps Type C |
| USB (Rear) |
6x USB 5Gbps Type A
1x USB 20Gbps Type C |
| TYPE-C PORT |
1x USB 20Gbps Type C
1x USB 20Gbps Type C |
| Internal Connectors |
1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports |
| Dimensions |
12.00" x 9.60" |
| Manufacturer Warranty |
3 Year |
