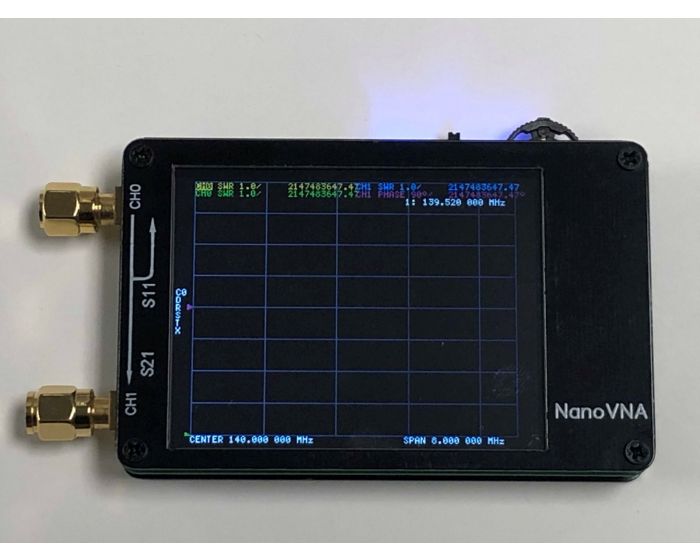

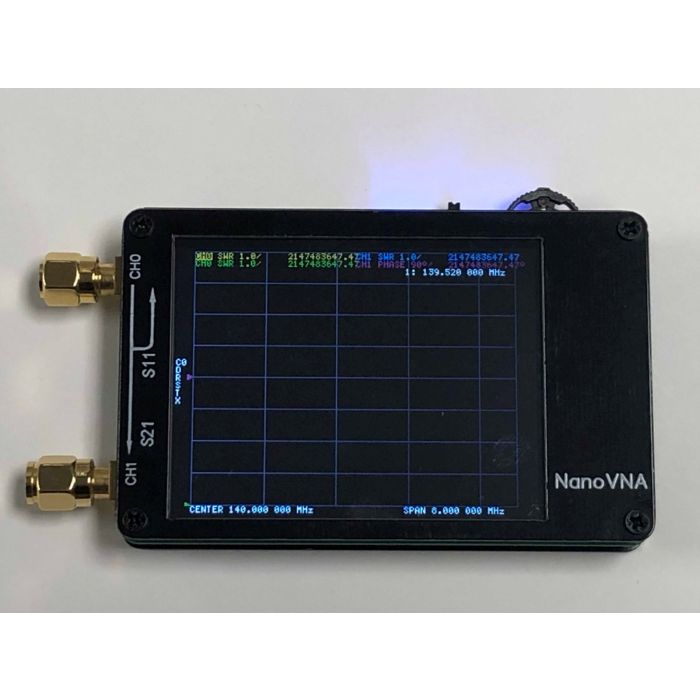

NanoVNA 50KHz to 900MHz Vector Network Analyzer with Touch-Screen Display

The NanoVNA is an open-source handheld 50KHz to 900MHz Vector Network Analyzer with Touch Screen Display. This model NanoVNA-B01 is a variant based on the original design by edy555 and validated by GigaParts to be one of the best production models available so that you can buy with confidence.

Note: Since this is an open-source product, support is not directly offered by GigaParts. Please refer to the many resources available online.

  • PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
  • Measurement frequency: 50KHz -900MHz
  • RF output: -13dbm (maximum -9dbm)
  • Measurement range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz))
  • Port SWR: < 1.1
  • Display: 2.8 inch TFT (320 x 240)
  • USB interface: USB type-C communication mode: CDC (serial)
  • Power: USB 5V 120mA, built-in 400mAh battery, maximum charging current 8A
  • Number of scanning points: 101 (fixed)
  • Display Tracking: 4
  • Marking: 4
  • Setting Save: 5
  • Frequency Tolerance: <2.5ppm
  • Frequency Stability: <0.5ppm





  • PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
  • Measurement frequency: 50KHz -900MHz
  • RF output: -13dbm (maximum -9dbm)
  • Measurement range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz))
  • Port SWR: < 1.1
  • Display: 2.8 inch TFT (320 x 240)
  • USB interface: USB type-C communication mode: CDC (serial)
  • Power: USB 5V 120mA, built-in 400mAh battery, maximum charging current 8A
  • Number of scanning points: 101 (fixed)
  • Display Tracking: 4
  • Marking: 4
  • Setting Save: 5
  • Frequency Tolerance: <2.5ppm
  • Frequency Stability: <0.5ppm

- NanoVNA Unit

- Carrying Case

- USB-C Power Cable

- (2) SMA to SMA Jumpers

- Calibration Plugs for calibration of the unit.
