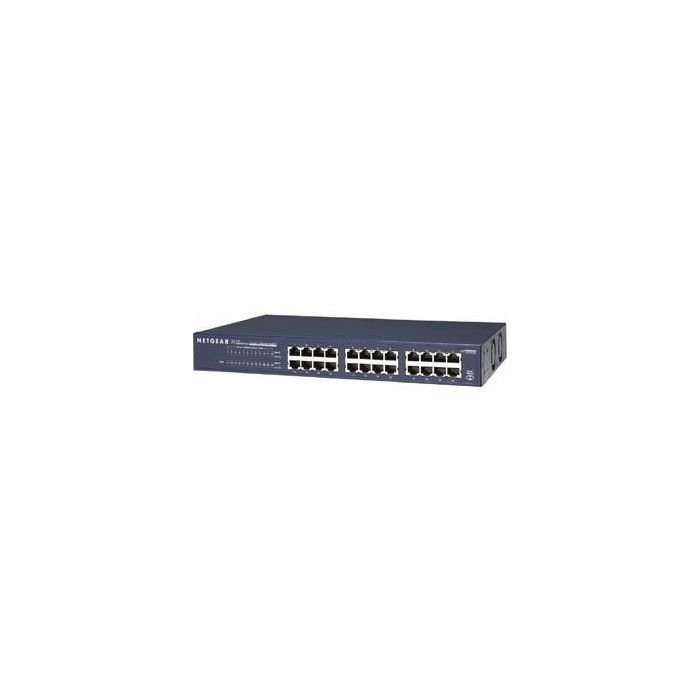

Netgear JGS524 24-Port Gigabit Ethernet Switch
NETGEAR's JGS524 Gigabit Switch gives your office network a mega boost of speed andcapacity that is within your budget.
NETGEAR's JGS524 Gigabit Switch gives your office network a mega boost of speed andcapacity that is within your budget. With up to 48 Gbps of bandwidth, this 24-portswitch can blast 2000 Mbps per port while their affordable prices enable you to put themeverywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easyintegration of 10, 100, and 1000 Mbps devices, this unmanaged, rack-mountable switchfeature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink onevery port. Users can take advantage of the its ability to deliver large amounts of multimedia,image, and video information in no time at all. Ideal for workgroups, labs, departments,or growing offices looking for oustanding performance at a low price.
Benefits:
- 24 10/100/1000 ports
- Powerful, non-blocking backplane
- Affordable enough for desktop connections
- Flexible Auto UplinK Technology makes the right link
Performance:
- Switching bandwidth: 48 gigabit per sec
- Forward rate (1000 Mbps port): 1,480,000 packets per sec
- Forward rate (100 Mbps port): 148,000 packets per sec
- Forward rate (10 Mbps port): 14,800 packets per sec
- Latency (1000 to 1000 Mbps): 20 µs max
- Packet Buffer Memory: 2 Mb
- MAC address database: 8,000
- Mean Time Between Failure (MTBF): 87,600 hours
Specifications:
- Network Ports: 24x 10/100/1000 Mbps twisted-pair RJ-45 ports
- Power Consumption: 100~240V; 50-60Hz; plug is localized to country of sale; 40W max
- Standards Compliance: IEEE 802.3i 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX Fast Ethernet; IEEE 802.3ab 1000BASE-T Gigabit Ethernet; IEEE 802.3x Flow Control
- Status LEDs: Unit - power; Per network port - Link, Activity, Speed
- Electromagnetic Compliance: CE mark, commercial; FCC Part 15 Class A; VCCI Class A; EN 55022 (CISPR 22), Class A, EN 50082-1; EN 55024; C-Tick
- Safety Agency Approvals: UL listed (UL 1950)/cUL; IEC950/EN60950
- System Requirements: UTP Category 5 or better cables; Network card for each PC or server
- Dimensions (WxDxH): 13 x 8.2 x 1.7 inch / 330 x 207 x 43 mm
- Weight: 5.3 lbs / 2.4 kg
