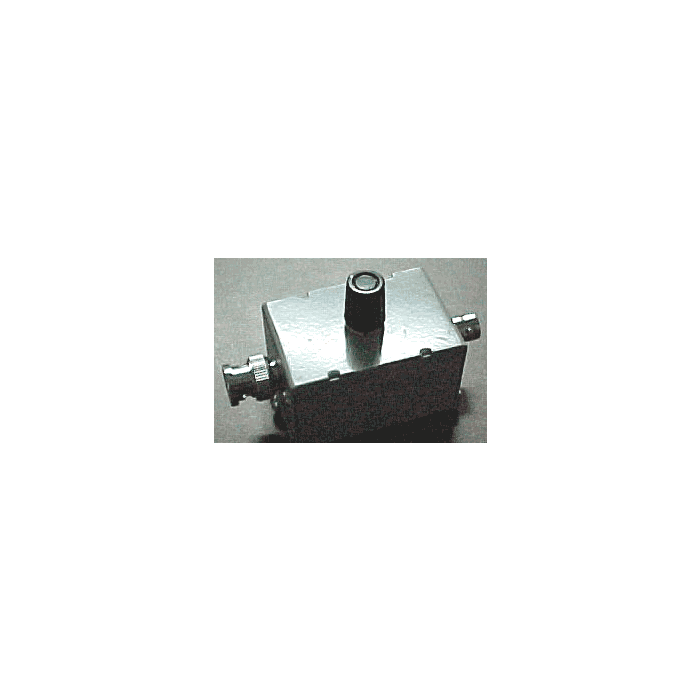

Arrow Antennas 4MHz Offset Attenuator (BNC Connectors)
4 MHz. Offset Fox Hunt Attenuator
Ideal for the Fox Hunt Loop and Arrow II Antennas
This could very well be the best Offset Attenuator ever made.
It uses a 4 MHz. sine wave instead of a square wave used in most Offset Attenuators.
This reduces the interference from pagers and other radio services.
All metal case for better shielding.
Very Important for using with a null type antenna, such as the Fox Hunt Loop.
2M- Minimum attenuation- 30db. Maximum attenuation- 82db
70cm- Minimum attenuation- 31db, Maximum attenuation- 72db
Weighs just 2 1/2 Oz.
Size is 1 1/2" by 3 1/2"
including the connectors.
3 Volt Lithium Battery
CR2032
Battery Life is over 100 Hours.
BNC Mounts directly on an HT
