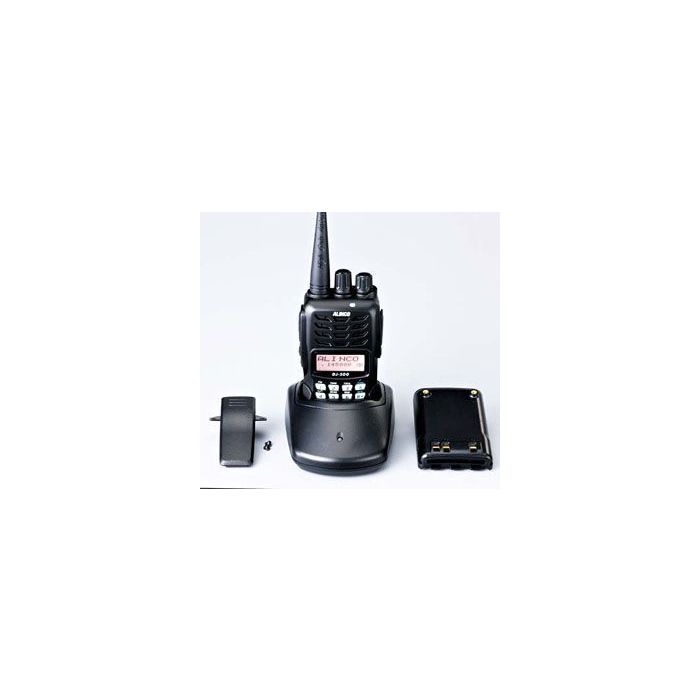

Open Box Alinco DJ-500T SNA002951

Name: Open Box Alinco DJ-500T SNA002951
Brand: Alinco
SKU: ZUS-1575
Price: 69 USD
Availability: OutOfStock

Main image Click to view image in fullscreen

SKU: ZUS-1575

Availability:

Out of stock

No Longer Available

Description

Only registered users can write reviews. Please Sign in or create an account

SPECIFICATIONS
General
Frequency range:	[T: TX] 144 - 148MHz, 420 - 450MHz [T: RX] 136 - 174MHz, 400 - 480MHz
Modulation:	F3E (FM)
Frequency step:	2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50KHz
Memory channel:	200 memory channels in total
Antenna impedance:	50ohm unbalanced
Frequency stability:	+/- 2.5ppm
Supply voltage:	DC 7.4V (Battery)
Current consumption: (Typical value)	1400mA TX / 300mA receive at Max audio output 70mA squelched Battery-save ON: average 27mA
Temperature range:	Unit -20 ~ +55digC (-4 ~ 131digF) / Battery packs: -10digC to +45digC (+14 to +113digF)
Ground:	Negative
Dimensions:	59.0W~98.0H~35.0D mm or 2.32W~3.86H~1.38D inches w/o projection
Weight:	approx.227g or 8.01oz inclusive of battery pack and antenna
Transmitter
Power output: (Approx.value)	Approx.5 / 2.5 / 1W
Modulation:	Variable reactance FM
Spurious emission:	-60dB or less
Max. deviation:	FM : +/- 5KHz NFM: +/- 2.5KHz
Receiver
System:	Direct-conversion
Sensitivity:	Wide -12dBu / Narrow -9dBu
Intermediate frequency:	1st IF 38.85MHz 2nd IF 450kHz
Selectivity:	-6dB : Wide 12kHz /Narrow 10kHz or more -60dB :Wide 30kHz / Narrow 24kHz or less
AF output:	1W (10% distortion)
