Open Box Alinco DM-430T 30A Switching PS S/NQ001644. Opened to test unit...all good.

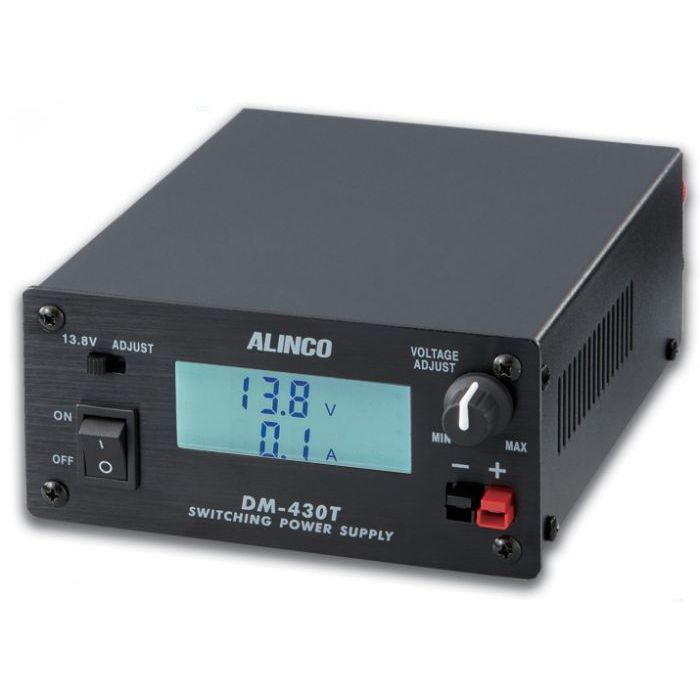

Alinco DM-430T Switching Power Supply 5-15 VDC 110V 30A Peak Anderson Power Poles
The Alinco DM-430T is a variable voltage, switching power supply that delivers up to 30 Amps peak and 25 Amps continuous. A slide switch on the front panel selects fixed voltage at 13.8 VDC or variable voltage 5 to 15 VDC.Â
The DM-430T comes with short-circuit protection, a current-limiting system and temperature protection. A large back-lit LCD Amp/Volt meter displays the status of the power supply. There is a thermostatically controlled fan. Output voltage regulation is less than 2% and ripple voltage is less than 80 mVp-p at rated load. Input voltage is 120 VAC. There are two Powerpole® ports on the front panel. The rear panel features large binding posts and a fan. With removable AC cord. 4.93 x 2.37 x 6.3 inches (125x60x160mm) 3.53 lbs. (1.6 kg).
The Power Poles are mounted across, not + and - as ARES standard is. It only takes about 30 min to fix the arrangement of the power poles. Take the cover off; detach front panel; release power pole panel mount; pull out roll pin; rearrange power poles; reinsert roll pin and reassemble.
