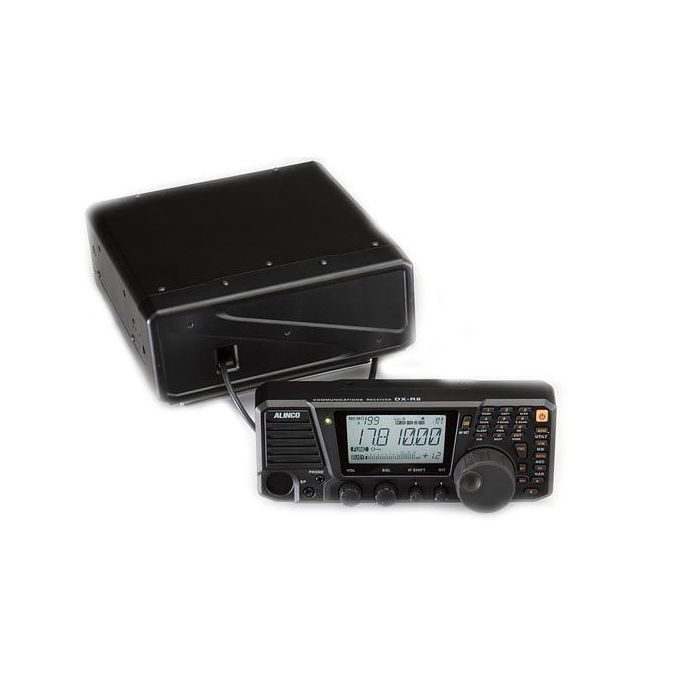

Open Box Alinco DX-R8T SNM001392

Name: Open Box Alinco DX-R8T SNM001392
Brand: Alinco
SKU: ZUS-1707
Price: 389 USD
Availability: OutOfStock

SKU: ZUS-1707

Availability:

Out of stock

No Longer Available

Description

General DX-R8 All Models
Operating mode:	USB, LSB, AM, CW, FM and I/Q output for SDR software
Antenna impedance:	50ohm unbalanced
Frequency stability:	+/-1ppm
Power requirement:	13.8V DC +/-15% (11.7 to 15.8V DC)
Ground method:	Negative ground
Current drain:	Receiver: 1.0A(max.)
Operating temperature:	-10digC to 60digC (+14digF to +140digF)
Dimensions:	240(w) x 94(h) x 255(d)mm (Projections not included) (9.45"(w) x 3.7"(h) x 10"(d) 240(w) x 100(h) x 293(d)mm (with projection) (9.45"(w) x 3.94"(h) x 11.54"(d)
Weight:	Approx. 4.1kg (144.6oz)
Receiver
Receive circuitry:	Double conversion superheterodyne
Sensitivity:	SSB: (0.15 to 1.8MHz) 0dBu(1uV) CW: (1.8 to 30MHz) -12dBu(0.25uV) AM: (0.15 to 1.8MHz) +20dBu(10uV) AM: (1.8 to 30MHz) +6dBu(2uV) FM: (28 to 30MHz) -6dBu(0.5uV)
Intermediate frequency:	1st 71.75MHz, 2nd 455KHz
Selectivity:	SSB, CW, AM(narrow): 2.4KHz/-6dB 4.5KHz/-60dB AM, FM: 6KHz/-6dB 18KHz/-60dB -6dB: 6KHz or more -60dB: 16KHz or less (NFM)
Spurious and image rejection ratio:	More than 70dB
Audio output power:	More than 2.0W(8ohm 10%THD)
RIT variable range:	+/-1.2KHz
DX-R8 Coverage * 40KHz~150KHz appears on the screen but Below 150KHz is out-of-warranty and not intended for practical use.
Receiver Frequency coverage:	DX-R8T (USA/Canadian): 150KHz - 29.99999MHz
Note: Specifications are subject to change without notice or obligation.
