Open Box Ameritron ALS-500MR SN15078
Check Store Stock

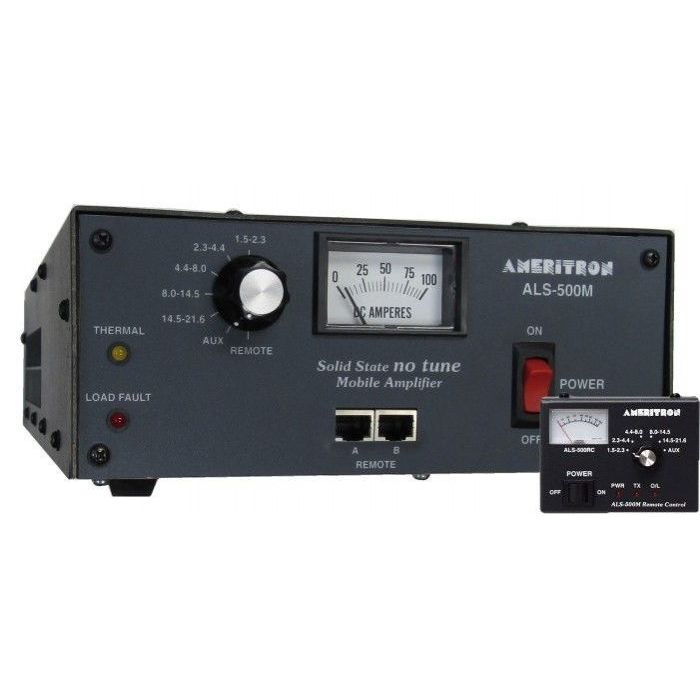

Open Box ALS-500M Solid State Amplifier w/ ALS-500RC Remote Control
- Mobile no tune Solid State Amplifier: uses four rugged 2SC2879 high power linear RF power transistors.
- Instant bandswitching:, no tuning, no warm up... just turn on and operate. makes mobile QSOs safer.
- Very Compact: Just 3 1/2 x 9 x 15 Inches -- fits in nearly any mobile installation; weighs only 7 pounds.
- Extremely quiet: quiet low speed, low volume fan stays off and silent until temperature rises.
- Output Power: 500 watts PEP, 400 Watts CW
- Continuous Coverage: 1.5 to 22 MHz 10/12 Meters with easy to install optional kit.
- Load Fault Protection disables and bypasses amplifier if antenna has excessively h high reflected power or if bandswitching is set lower than exciter frequency -- virtually eliminates damage because of operating error; has Load Fault LED indicator.
- Thermal Overload Protection: disables and bypasses amplifier if temperature is excessively high; automatically resets when temp drop to safe level
- Thermal Overload LED indicator.
- Excellent harmonic suppression: multiple section output network, push-pull output circuit has excellent harmonic suppression.
- DC current meter: lets you monitor collector current.
- ON/OFF Switch: bypasses amplifier for "barefoot" operation without having to disconnect high current power supply cables.
- Remote ON/OFF Control lets you remote control ON/OFF function for out-of-the-way mounting of amplifier.
- Exciter Drive less than 100 watts input gives full output.
- Power Supply Requirements: requires 14 VDC at 80 amperes peak current for PA transistors and separate line for 14 - 16 VDC at 4 amperes for control and bias circuits.
- Made in USA
