Open Box ASRock H110 7CM0XB048577
Comments: Open Box ASRock H110 7CM0XB048577. Like new. Missing data cables

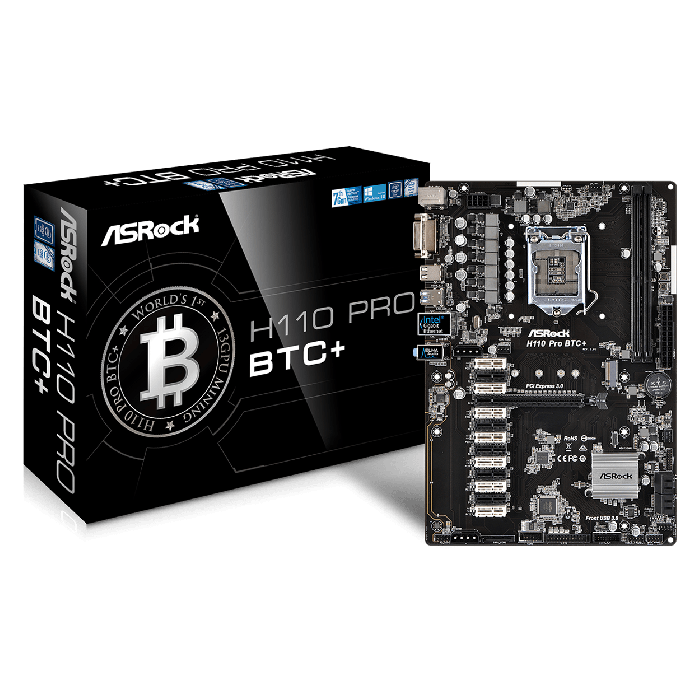

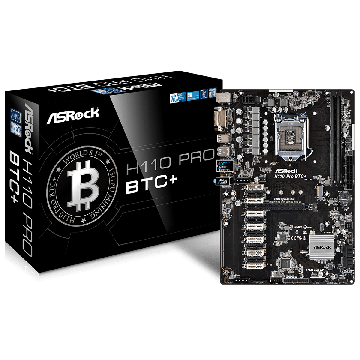

ASRock H110 PRO BTC+ 13 GPU Crypto Mining Motherboard
H110 Pro BTC+ is specifically designed for crypto mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The 13 onboard PCIe slots guarantee fast GPU mining, while the additional power connectors provide advanced system stability while mining.
ASRock H110 Pro BTC+ is ready to mine right out of box, no need to do any additional bios setup to enable multi GPU mining. Hybrid GPU system is very popular among hardcore miners, this motherboard is ready for up to 13 mixed AMD+NVIDIA GPU mining under Windows10, not only that, H110 Pro BTC+ is also fully compatible with professional mining operating system Such as SimplMining OS & ethOS, it is able to mine Ethereum, Zcash, Monero, and other GPU-minable coins.
Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for better stability.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Crypto Mining
This motherboard is specifically designed for mining, the revolutionary digital crypto-currency that may be used anywhere in the world. The abundant onboard PCIe slots guarantee fast Crypto mining, while the additional power connectors provide advanced system stability while mining.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for better stability.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Power On / Reset Button
Power On & Off system with onboard button is a must for open frame mining.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
| Unique Feature ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update and APP Shop |
| CPU - Supports 7th and 6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1151) - Supports CPU up to 91W - Digi Power design - 8 Power Phase design - Supports Intel Turbo Boost 2.0 Technology |
| Chipset - Intel H110 |
| Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2400/2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 32GB - Supports Intel Extreme Memory Profile (XMP) 2.0 - 15 Gold Contact in DIMM Slots |
| BIOS - 64Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, DRAM, PCH 1.05V Voltage multi-adjustment |
| Graphics - Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics - Gen9 LP, DX11.3, DX12 - HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU) - HWA Encode/Decode: VP8, HEVC 8b GPU/SWEncode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU) - Max. shared memory 1024MB - Supports DVI-D with max. resolution up to 1920x1200 at 60Hz - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D Port - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port |
| Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps |
| LAN - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN (Supported on Black PCIe Slots only) - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Slots - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) - 12 x PCI Express 2.0 x1 Slots |
| Storage - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug - 1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module |
| Connector - 1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 2 x Chassis Fan Connectors (4-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 2 x PCIe Power Connectors-1 x SATA Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection) |
| Rear Panel I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x DVI-D Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI Software - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock Instant Flash |
| Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor - ATX Form Factor: 12.0-in x 8.2-in, 30.5 cm x 20.8 cm - Solid Capacitor design |
| OS - Microsoft Windows 10 64-bit (For 7th Gen Intel CPU) - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU) |
| Certifications - FCC, CE |
| Item Dimension (L inchxW inchxH inch) 14 x 10 x 3 Weight 3.00 lb Warranty Information 1 Year |
