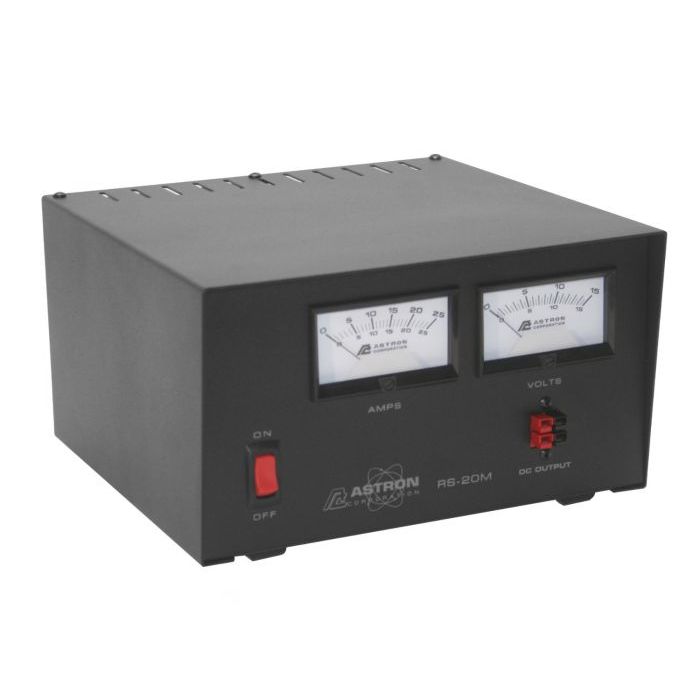

Open Box Astron RS-20M-AP 20A Power Supply w/ Meters SN151455

No free freight
SKU
ZUS-4978
$135.00
Add to Wish List

Sold Out!

Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Open Box Astron RS-20M-AP 20A Power Supply w/ Meters SN151455. Power Supply tested and wors as designed. Original box damaged in shipping.

LED BACKLIT VOLT AND AMP METERS

SOLID STATE ELECTRONICALLY REGULATED

FOLD BACK CURRENT LIMITING Protects Power Supply from excessive current and continuous shorted output

CROWBAR OVER VOLTAGE PROTECTION on all models except RS-4A, RS-4L, RS-5A, RS-5L

MAINTAINS REGULATION AND LOW RIPPLE at low line input Voltage

THREE CONDUCTOR POWER CORD

HEAVY DUTY HEAT SINK

CONTINUOUS DUTY: 16 Amps

ICS*: 20 Amps

POWER TERMINALS: 1/4"-20 Screw Type & Front Panel Anderson Power Poles Installed
AC POWER DRAW

  • IDLE: 215mA
  • FULL LOAD: 3.4A

INPUT VOLTAGE: 105-125VAC

OUTPUT VOLTAGE: 13.8VDC ±0.05 volts​

OPERATING TEMP: -10 to 55°C

FUSE: GMC 5A

RIPPLE: LESS THAN 5MV PEAK TO PEAK (full load and low line)

LOAD REGULATION: 0.08% from 0 to Full Continuous Load

​​EFFICIENCY: 77%

FAN COOLED: No

DIMENSIONS: 5 x 9 x 10½"
