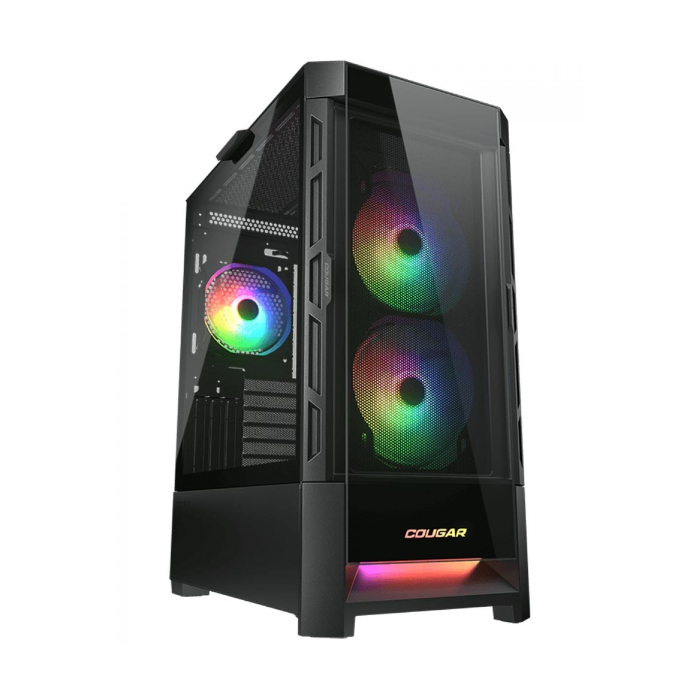

Duoface RGB offers two distinctive front panels. The tempered glass panel is able to show off brilliant lighting scenery and the airflow panel has extensive fresh air intakes. It not only brings you unbeatable cooling performance, but also displays fantastic lighting to your theme. The innovative quick slide dust filter is a highly functional feature that merges aesthetically. Stylish design at the edges offers you uniqueness that no one can compare. You can easily slide off the dust filter without removing the front panel. Duoface RGB has two massive 140mm ARGB fans, a 120mm ARGB fan, and a highlighted logo. You are free to control several amazing lighting effects with the dedicated RGB button. The built-in LED controller is compatible with motherboards’ 5V ARGB connection for system-wide lighting synchronization. The airflow panel is forged from premium metal and perforated with 5.0mm diameter holes. Providing extensive fresh air intake that brings you unbeatable cooling performance. Duoface RGB’s 230mm wide-body design allows much larger interior space with better cooling performance and cable management. It can surely fit a E-ATX motherboard, a 330mm graphic card, two 3.5” HDDs and two 2.5” SSDs, which allows for the most extreme system builds.
| Product Name |
Duoface RGB |
| Case Form Factor |
Mid Tower |
| Motherboard Type |
Mini ITX / Micro ATX / ATX / CEB / *E-ATX |
| Dimensions (WxHxD) |
230 x 491 x 386 (mm)
9.1 x 19.3 x 15.2 (in) |
| I/O Panel |
USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button |
| 3.5" Drive Bay |
2 |
| 2.5" Drive Bay |
2 (2 SSD trays included) |
| Expansion Slots |
7+3 |
| Vertical GPU Support |
Yes |
| Cooling Fan Support |
Front |
120mm x 2 / 140mm x 2 |
| Top |
120mm x 2 / 140mm x 2 |
| Rear |
120mm x 1 / 140mm x 1 |
| Pre-installed Fans |
Front |
140mm ARGB fan x 2 |
| Rear |
120mm ARGB fan x 1 |
| Speed |
1000 RPM |
| Connector |
5V 3 Pin (ARGB) / 3 Pin (Fan) |
| Maximun Number of Fans |
5 Max. |
| Water Cooling Support |
Front |
*280mm / 240mm / 140mm / 120mm |
| Top |
*280mm / 240mm / 140mm / 120mm |
| Rear |
120mm / 140mm |
| Transparent Left Panel |
4mm Tempered Glass |
| Onboard Lighting System |
Yes |
| RGB Sync with M/B |
Yes |
| COUGAR Logo RGB Light |
Yes |
| Max. Graphics Card Length |
330 (mm) / 13 (in) |
| Max. CPU Cooler Height |
190 (mm) / 7.5 (in) |
| Max. PSU Length |
160 (mm) / 6.3 (in) |
* E-ATX up to 277mm wide.
* Please choose either front or top to install a 280mm radiator.
* Max. length of RTX 3090 graphic card is 325mm.
