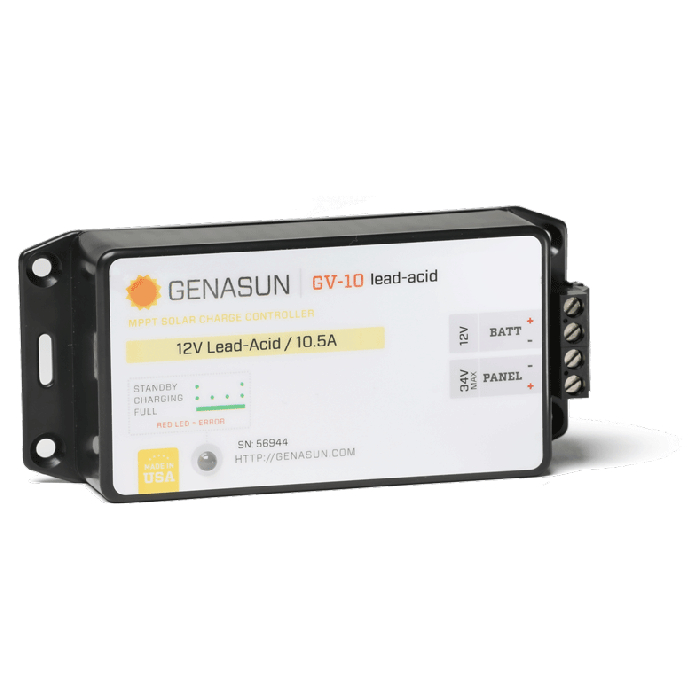

Open Box Genasun 10A MPPT Solar Charge Controller for Lead Acid Batteries SN138868

Open Box Genasun 10A MPPT Solar Charge Controller for Lead Acid Batteries SN138868

Evaluated by Ham Radio Crash Course by Josh!!

So you paid for a 140 Watts solar panel, and now you want to get your money’s worth. The GV-10 extracts more power from any given panel than a PWM or other MPPT controllers. PWMs may offer a lower controller cost, the GV-10 MPPT controller delivers more power reducing the cost per watt by 10-30%. The GV-10 is the ultra-high-speed MPPT solar controller.

• Maximum recommended panel power 140W, 10.5 A charging current.  Advanced Multi-Stage charge profile for 12V Lead-Acid/AGM/Gel/Sealed/Flooded batteries.
• High-Speed MPPT: speed tracking 15 Hz (15 times per sec.)
• 98.3% Peak Efficiency and Tiny Night Consumption (0.9 mA)
• Advanced electronic protections for reverse panel and battery polarity.
• 5-Year Warranty, Made in the USA, certified cETLus, Class 1 Div.2, conform to CE, FCC, RoHS.


Charge Profile:

Flooded batteries (Jumper ON):

• Bulk Voltage: 14.6 V
• Absorption Voltage: 14.4 V
• Absorption Time: 2.5 hours
• Float Voltage: 13.5 V
• Equalization Voltage: 15 V
• Equalization Time: 2h (every 30 days)
• Sealed batteries (Jumper OFF):Bulk Voltage: 14.3 V
• Absorption Voltage: 14.1 V
• Absorption Time: 2.5 hours
• Float Voltage: 13.7 V
