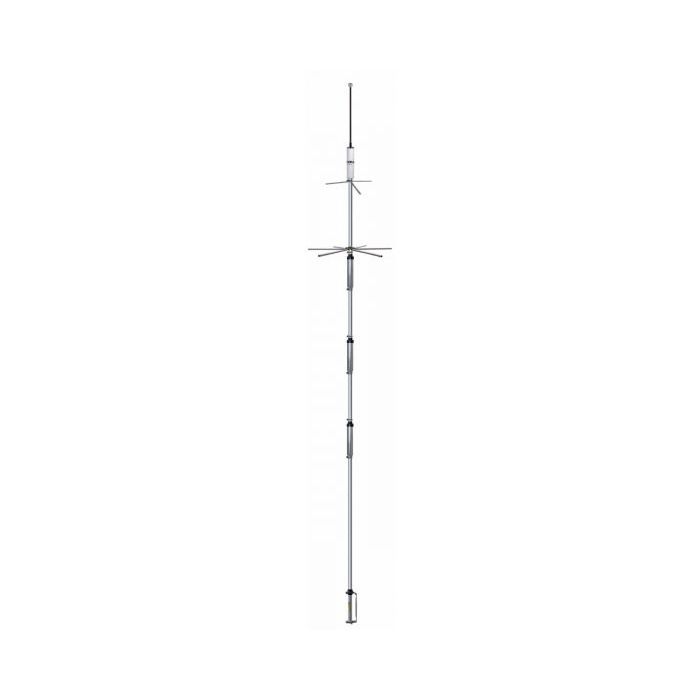

Open Box Hustler 5-BTV 5 Band Vertical HF Fixed Station: 10, 15, 20, 40, and 75 or 80 Meters SN188240

Open Box Hustler 5-BTV 5 Band Vertical HF Fixed Station: 10, 15, 20, 40, and 75 or 80 Meters SN188240

5 Band Vertical HF Fixed Station: 10, 15, 20, 40, and 75 or 80 Meters** Does not qualify for free freight **

Full band coverage on 10-40 meters (1.6:1 at band edges typical). Solid one inch fiberglass trap forms for optimum mechanical stability. Heavy gauge aluminum with stainless steel hardware construction throughout. Feed with any length 50 ohm coax.

Electrical:

• SWR: 1.6:1 at band edges
• Bandwidth: up to 100 kHz. on 75/80 meters
• Power: full legal limit CW and SSB 1000 watts

Mechanical:

• Length: 25'1" long
• Weight: 17 lb.
• Wind Load: 29 lb. at 70 mph

Mounting:

• Ground mount with or without radials, roof or tower mount with radials.
• Vertical support up to 1.75 in. O.D. pipe.

NOTE: This antenna uses ring terminal studs for it's feedline connection. We recommend purchasing a ring terminal to SO-239 adapter, which you can find under the "Must-Have Accessories" section of this page.
