Open Box Hy-Gain AV-18VS 18' Base Loaded Vertical Antenna SN165487

Open Box Hy-Gain AV-18VS 18' Base Loaded Vertical Antenna SN165487

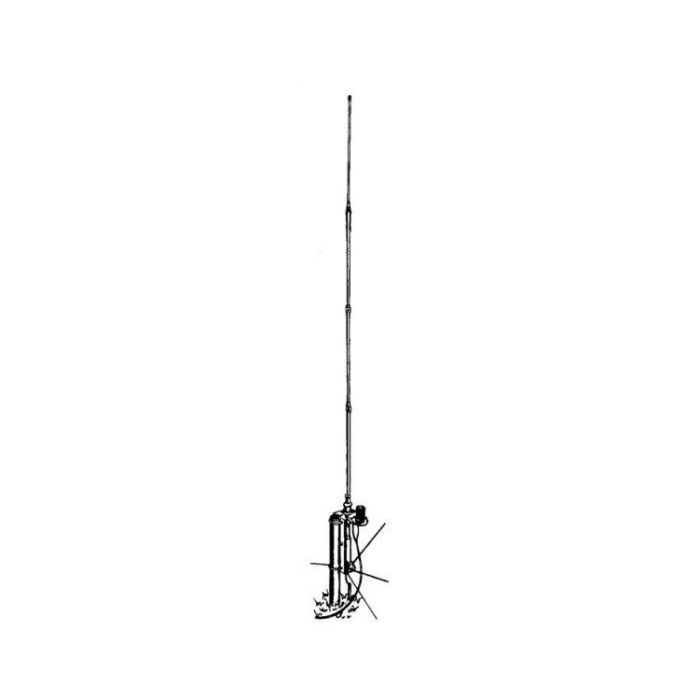

The Hy-Gain Model 18V-S is a trapless, vertical antenna which is manually tuned to any band, 10 thru 80 meters, by a simple adjustment of the feed point on the base inductor. It is designed to be fed with 50 ohm coax, and works efficiently for DX or local contacts. It now features stainless steel hardware for all electrical and most mechanical connections. The antenna is self-supporting and can survive winds in excess of 80 mph. It is highly portable and knocks down to an overall length of 5 feet.

Specifications:

• Coverage:10, 15, 20, 40, 80m
• Max Power:1500 Watts PEP
• Input Connector: #10 Ring Terminal
• Height:18 feet
• Weight:4 pounds
• Wind Survival:80 MPH
• Mast Size: 1.5 in - 1.625 in. OD
