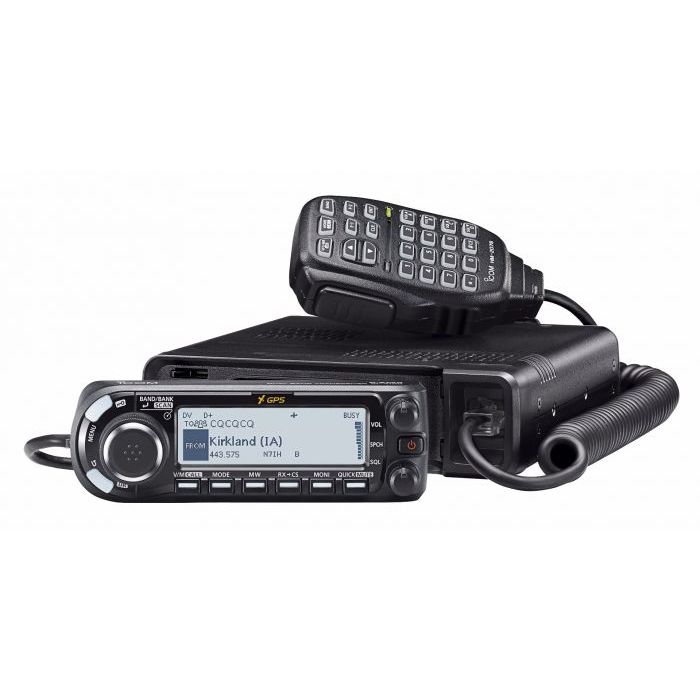

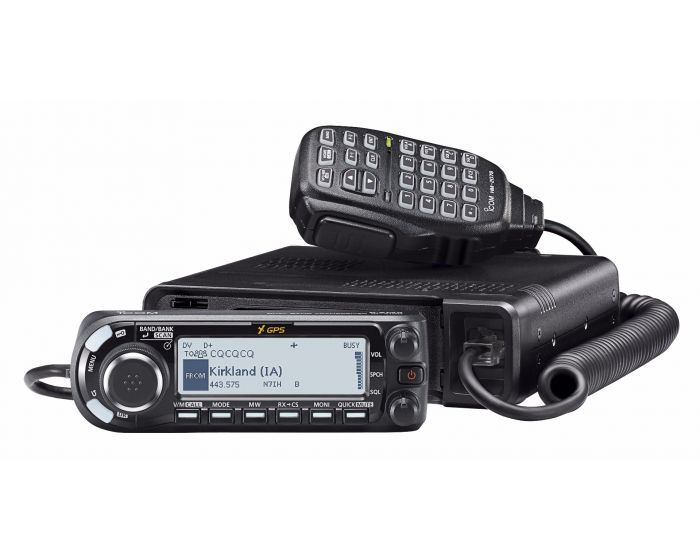

Open Box Icom ID-4100A 50W VHF/UHF Dual Band D-STAR Transceiver S/N:15004239
Frequency coverage
- TX: 144–148, 430–450 MHz
- RX: 118–174, 230–550 MHz*
- *Guaranteed range 144–148, 430–450 MHz
Type of emission: F2D, F3E, F7W
Mode: DV, FM, FM-N, AM (RX only), AM-N (RX only)
No. of memory channels
- 1000 regular channels, 4 call channels, 50 program scan edges, 1500 repeater memories and 300 GPS memory
Operating temperature range: –10°C to +60°C; 14°F to +140°F
Frequency stability: ±2.5 ppm (–10°C to +60°C on the basis of 25°C)
Voice coding speed: 2.4kbps
Power supply requirement: 13.8 V DC ±15%
Current drain
- Transmit: 13.0 A
- Receive: 1.2 A/0.9 A (Max. audio/Stand-by)
Antenna impedance: 50 Ω (SO-239)
Dimensions (W × H × D)
- Main unit + Controller: 150 × 40 × 171.9 mm; 5.9 × 1.6 × 6.8 in
- Controller: 122 × 40 × 29.9 mm; 4.8 × 1.6 × 1.2 in
- (W×H×D, Projections are not included.)
Weight
- Main unit: 1.1 kg; 2.4 lb
- Controller: 100 g; 3.5 oz
Transmitter
Output power: 50 W, 15 W, 5 W (Hi, Mid, Low)
Max. frequency deviation: ±5.0 kHz/±2.5 kHz (W/N)
Spurious emissions: Less than –60 dBc
Microphone impedance: 600 Ω (8-pin modular)
Receiver
Intermediate frequencies: 46.35 MHz/450 kHz (1st/2nd)
Sensitivity
- FM, FM-N: Less than 0.18 μV (amateur bands at 12 dB SINAD)
- DV: Less than 0.22 μV (at 1% BER)
Squelch sensitivity: Less than 0.13 μV (threshold)
Selectivity
- FM/FM-N: More than 60 dB/55 dB
- DV: More than 50 dB
Spurious and image rejection: More than 60 dB
Audio output (at 13.8V DC): More than 2.0 W (10% distortion, 8 Ω load)
Ext. speaker connectors: 2 conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
