Description

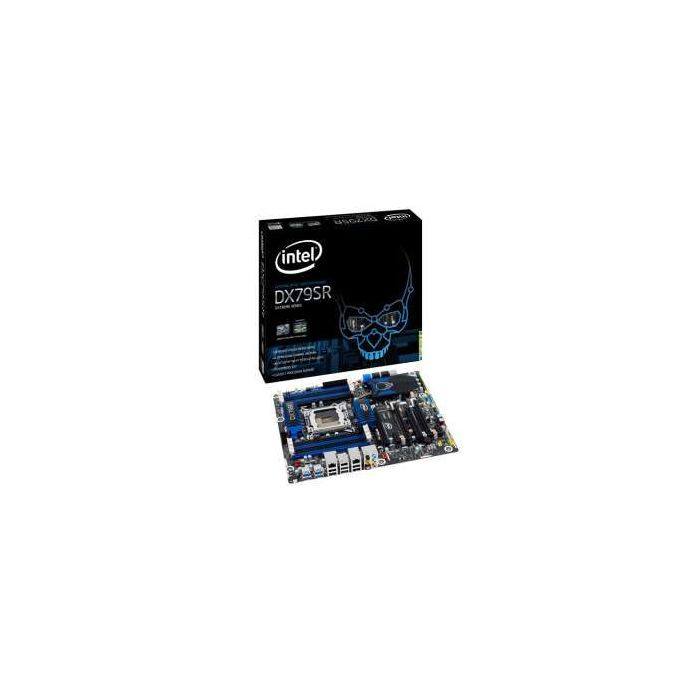

Open Box Intel X79 Skull Trail Extreme Motherboard
Includes motherboard only, no manuals or accessories. Value priced for this reason!
Intel is at it again when it comes to the performance and bandwidth that extreme gamers, digital media creators, and ultimate multitaskers need most. The Intel® Desktop Board DX79SR provides unmatched performance in production and editing, as well as digital media rendering and real-time audio/video preview capabilities. The massive data throughput and support for the Intel® CoreTM i7 processor Extreme Edition runs more applications simultaneously, with less wait time. SuperSpeed USB 3.0, SATA 6.0 Gb/s, quad channel DDR3 memory and full support for AMD CrossfireX* and NVIDIA SLI* technology are just a few of the many features supported on this board
Specifications
Model
Brand -- Intel
Model -- BOXDX79SR
Supported CPU
CPU Socket Type -- LGA 2011
CPU Type -- Core i7 (LGA2011)
Chipsets
Intel X79
Memory
Number of Memory Slots -- 8×240pin
Memory Standard -- DDR3 2400/2133/1866/1600/1333
Maximum Memory Supported -- 64GB
Channel Supported -- Quad Channel
Expansion Slots
PCI Express 3.0 -- x16 3 (x16, x16, x8)
PCI Express x1 -- 2 x PCI Express x1
PCI Slots --1 x PCI Slot
Storage Devices
SATA 3Gb/s -- 4 x SATA 3Gb/s
SATA 6Gb/s -- 4 x SATA 6Gb/s
Onboard Video
Onboard Video Chipset -- None
Onboard Audio
Audio Chipset -- Realtek ALC892
Audio Channels -- 10-channel (7.1+2)
Onboard LAN
LAN Chipset -- Intel 82579L
Second LAN Chipset -- Intel 82574L
Max LAN Speed -- Dual 10/100/1000Mbps
Wireless LAN -- WiFi is included
Bluetooth -- Yes
Rear Panel Ports
USB 3.0 -- 4 x USB 3.0
USB 1.1/2.0 -- 6 x USB 2.0
IEEE 1394 -- 1 x IEEE 1394a
S/PDIF Out -- 1 x Optical
Audio Ports -- 5 Ports
Internal I/O Connectors
Onboard USB -- 2 x USB 3.0 + 8 x USB 2.0
Onboard 1394 -- 1 x 1394a
Physical Spec
Form Factor -- ATX
Dimensions (W x L) -- 12.0" x 9.6"
Power Pin -- 24 Pin
