Open Box LDG FT Meter SN64136
Comments: Open Box LDG FT Meter SN64136 Like new. Box has some rub marks on top and FBA stickers on the side.
FT-Meter -- Analog meter for FT-857/897
Yaesu's popular FT-857 and FT-897 transceivers are wonders of compact efficiency. These do-anything, go-anywhere transceivers were science fiction just a few years ago, but ham's today are using them in shacks, mobiles and on dxpeditions from the back yard to the top of the world.
About the only problem with these radios is that us hams who are old enough to remember when stuff like this really was science fiction are also old enough to wish that the display was just little bit bigger. As we grow in wisdom and experience, we also grow to depend on bifocals; those tiny little screens are just plain hard to read! Add to that a strong desire to see a real live meter needle bouncing on voice peaks, and you find yourself wishing Yaesu had thought all this through when they designed the radio.
Well, in fact they did. A little known feature of these radios, noticed only by compulsive manual readers, is a meter jack on the bottom of the front panel. You have to figure that Yaesu knew they needed a bigger display all along, but just left it as an exercise for the user. Well, help is here! The LDG FT-Meter is a low-cost, plug-and-play solution to all your FT metering needs.

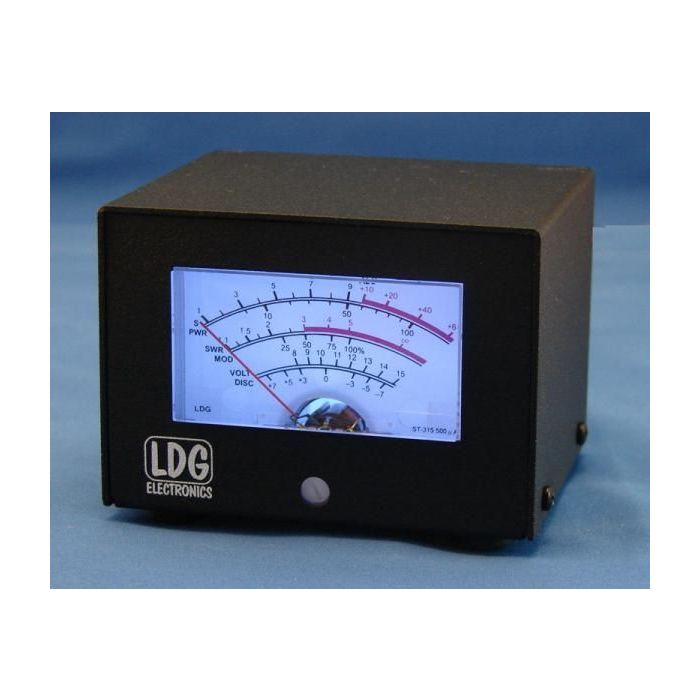

The FT-Meter presents a lush, highly readable 2.5" meter face with calibrated scales for signal strength and discriminator reading on receive, and power output, SWR, modulation, ALC action and supply voltage on transmit. Each function is s electable from the radio's menu. Easily visible from anywhere on your desk or dash, the FT-Meter is illuminated by any external 12 vdc source. The FT-Meter comes fully assembled and ready to go; just plug it into the radio and you're in the picture like never before. Order yours today.
Receive: S-Meter, Discriminator or Voltage
Transmit: RF Power, SWR, Modulation, ALC or Voltage
Size: 3.5 x 3 x 2 inches
Cable length 2.5 feet
Sensitive 500 uA meter movement
Externally powered meter lamp
Lamp is 12 volts, 100 mA
Weight: 0.5 lb.
