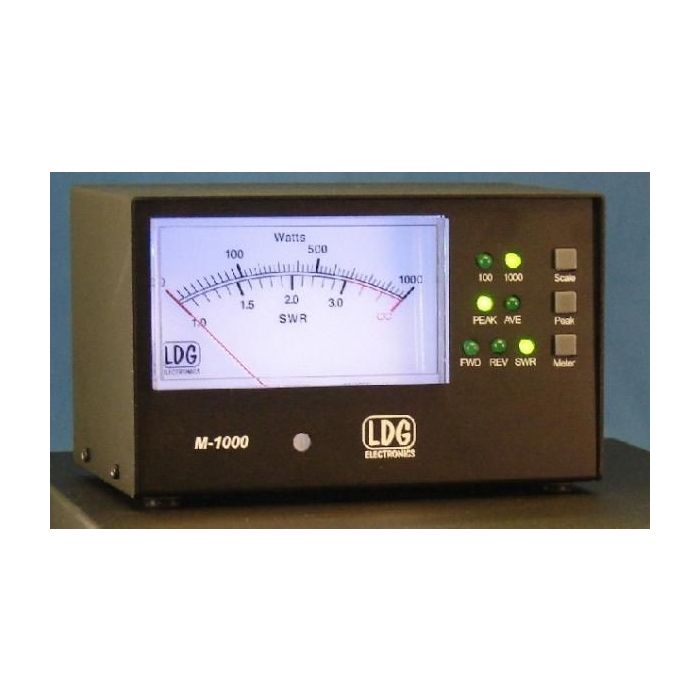

Open Box LDG M-1000 SN50802
Open Box LDG M-1000
The M-1000 provides accurate and precise metering for forward and reflected power, as well as SWR readings when connected to an AT1000ProII tuner. Peak and average readings are available, and the M-1000 may be set to display a different parameter from the one displayed on the AT1000ProII’s built-in LED bargraph meters.
The M-1000 plugs into the External Meter jack on the rear of the AT1000ProII, and is powered from the AT1000ProII. An adjustable brightness backlight is provided.
- Giant, 4.75” (diagonal) analog meter movement.
- Frequency-compensated Forward Power, Reflected Power, and SWR meter scales.
- Peak Hold or Average Power display modes.
- 0-100W and 0-1kW meter scales.
- Cool blue backlight with adjustable brightness.
- Power requirements: 11 to 16 VDC @ 1A max. Dimensions: 11” x 10.5” x 3” Weight 5 pounds.
