Open Box MFJ-249C SN54434

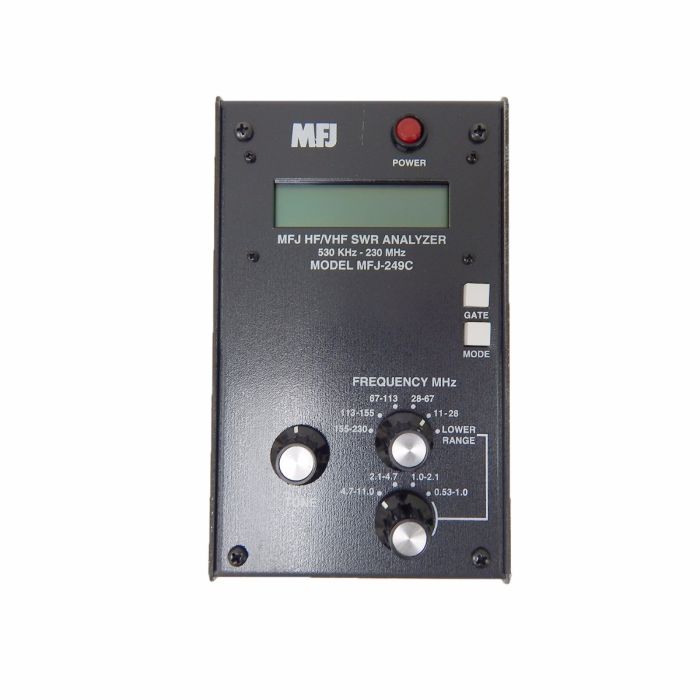

Open Box MFJ-249C
HF/VHF Antenna/SWR/RF Analyzer
(New C model adds 220 MHz!)
The World's most popular SWR analyzer just got incredibly better and gives you more value than ever!
The MFJ-249B gives you a complete pictures of your antenna's performance. You can read antenna SWR and Complex Impedance 1.8 to 170MHz. Read Complex Impedance as series resistance and reactance (R+jX) or as magnitude (Z) and phase (degrees). You can determine velocity factor, coax cable loss in dB, length of coax and distance to a short or open in feet. You can read SWR, return loss and reflection coefficient at any frequency simultaneously at a single glance. Also read inductance in UH and capacitance in pF at RF frequencies. Large easy-to-read two line LCD screen clearly displays your information. Built-in frequency counter, Ni-Cad charger circuit, battery saver, low battery warning and smooth re-duction drive tuning and much more. Super easy to use! Just set the bandswitch and tune the dial -- just like you transceiver. SWR and Complex Impedance are displayed instantly!
Here's what you can do
Find your antenna's true resonant frequency. Trim dipoles and verticals. Adjust your Yagi, quad, loop and other antennas, change antenna spacing and height and watch SWR, resistance and reactance change instantly. You'll know exactly what to do by simply watching the display. Perfectly tune critical HF mobile antennas in seconds for super DX -- without subjecting your transceiver to high SWR. Measure your antenna's 2:1 SWR bandwidth on one band, or analyze multiband performance from 1.8 to 170Mhz! Check SWR outside the ham bands without violating FCC rules. Take the guesswork out of building and adjusting matching networks and baluns.
Measure distance in feet to a short or open in faulty coax. Measure length of a roll of coax, coax loss, velocity factor, impedance. Measure inductance and capacitance. measure resonant frequency and approximate Q of traps, stubs, transmission lines, RF chokes, tuned circuits and baluns.< Adjust your antenna tuner for a perfect 1:1 match without creating QRM.
And this is only the beginning! Fully portable, take it anywhere -- remote sites, up towers, on DX-peditions. Use 10AA or Ni-Cad batteries (not included) or 110VAC with MFJ-1312D. Rugged all metal cabinet is only 4x2x6 3/4 Inches.
All readings display on LCD,no meters on this model.
