MFJ Ham Station Desktop Microphone Console
This microphone does not work with the FT-100 or the TS-520SE (despite what some online manuals report).
This is the most complete ham station desktop microphone console youll ever own!

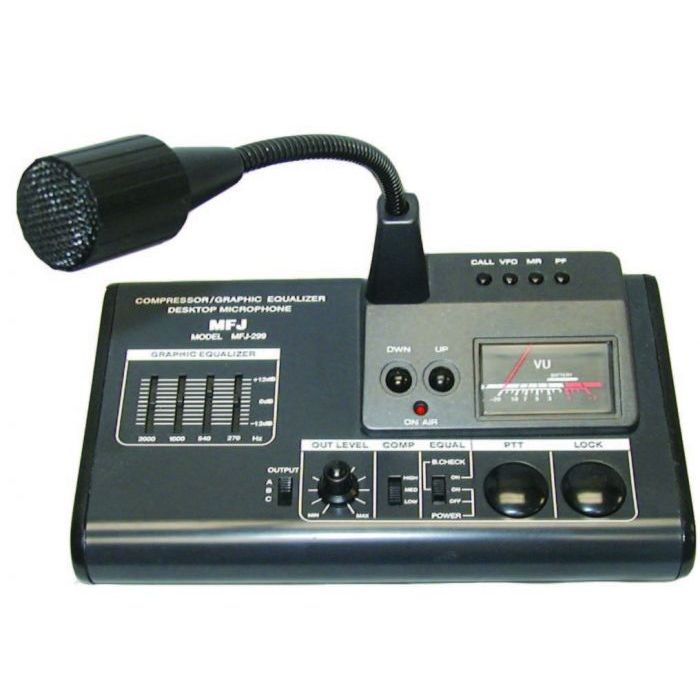

The MFJ-299 Ham station Console Desktop microphone is enclosed in a heavy duty all metal cabinet with molded plastic end caps. Nice, secure rubber feet stay put on your table. All controls are permanently silk -screened and easy-to-read. Here are a few of the exciting features we think you will appreciate.
A high sensitivity ceramic microphone element (10.5 inches with FlexNeck TM) bends and stretches to your most comfortable operating position. A fine mesh metal grill helps to eliminate background noise.
MFJ-299 has a high quality compressor amplifier with high, medium, and low selection switches. It always sends out a constant and optimum level w without distortion, regardless of audio input level. The high switch (45dB) is selected when you speak in a low voice or away from the microphone in a quiet place>
The medium switch (35dB) is the optimum position for a normal QSO. You can enjoy a QSO with enough voice level at 10 centimeters away from the microphone.
The low switch (10dB) will activate only when the microphone has a large input level of audio. This is great for operating in a noisy area like at a HamFest talk-in station.
MFJ-299 is equipped with a built-in graphic equalizer with center frequencies of 270, 540, 1000,and 2000 Hz. It gives best audio quality for FM mode and maximum efficiency for SSB mode.
Has on-air indicator and an output level volume control. On-air blinks on and off when in receiving mode and will light up continuously when transmitting.
MFJ-299 is equipped with PTT momentary and PTT lock switches that allow you to switch between long one-sided QSOs and fast two-sided conversations. The frequency up/down switches let you operate your transceiver at your desktop microphone. Four function keys (CALL, VFO, MR, PF) are specifically for Kenwood transceivers only. An output level meter lets you adjust the output level to not exceed 0 dB. It also works as a battery checker for a few seconds, just after switching the power on.
A revolutionary triple radio input socket makes it super easy to install for any model transceiver: Icom, Yaesu, Kenwood, and compatible transceivers. It makes it easy to switch to several different radios, ie: field day, contests, base station, etc.
MFJ-299 has a built-in battery check circuit. It lets you press the power switch and the level meter will indicate the battery condition with power voltage for a few seconds.
