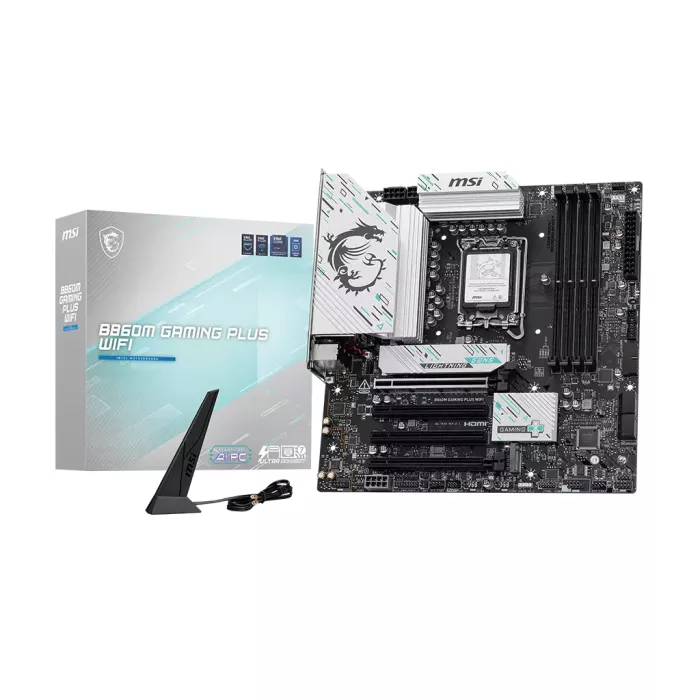

The B860M GAMING PLUS WIFI is a gaming oriented Micro-ATX motherboard that is constructed with a 12 Duet Rail Power System and the latest Intel B860 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, Thunderbolt 4, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.
Supports Intel Core Ultra Processors (Series 2)
The B860M GAMING PLUS WIFI motherboard supports Intel Core Ultra Processors (Series 2).
Form Factor: mATX
Socket Type: LGA 1851
Chipset: Intel B860
Ultra Power - 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology, 8+4 pin power connectors and EZ OC Tuning functions, the B860M GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Digital PWM IC
12 Duet Rail Power System (P-PAK)
1-Phase SA Power
1-Phase GT Power
1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8600+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory Extension Mode: Provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor** and EZ PCIe Clip II)
1 x PCIe 4.0/3.0 x16 slot*
2 x PCIe 4.0 x1 slots
*Support x16/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The B860M GAMING PLUS WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
1 x Gen4 x4 64Gbps slot
1 x Gen4 x2 32Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Ultra Connect
Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.
5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
