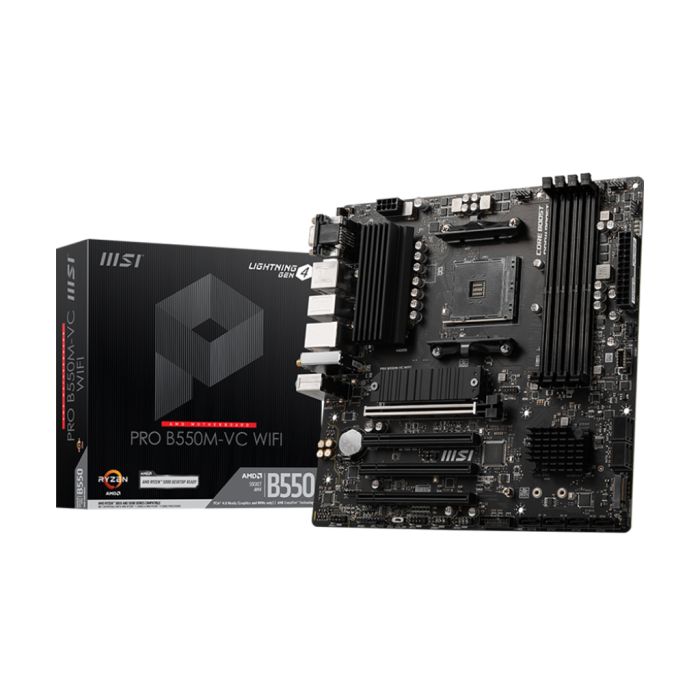

Open Box MSI PRO B550M-VC WIFI mATX DDR4 AM4 Motherboard

Name: Open Box MSI PRO B550M-VC WIFI mATX DDR4 AM4 Motherboard
Brand: MSI
SKU: US2563
Price: 134.29 USD
Availability: OutOfStock

SKU: US2563

Availability:

Out of stock

No longer available.

Available New

This is a used or open-box unit. The same product is also available new.

MSI PRO B550M-VC WIFI mATX DDR4 AM4 Motherboard $149.99 In stock

View New Product

Description

Specifications

Feature	Specification
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
Manufacturer Number	PRO B550M-VC WIFI
Product Condition	New
CPU	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
Chipset	AMD® B550 Chipset
CPU Socket	AM4
Form Factor	Micro-ATX
Memory	4 x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
LAN	1 x Realtek® RTL8111H LAN controller
Wireless LAN	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth	Supports Bluetooth® 5.2, FIPS, FISMA
Audio	Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio
MULTI-GPU	-
STORAGE	1 x M.2 Gen4 x4 slot 1 x M.2 Gen3 x4 slot 8 x SATA 6Gb/s ports
Onboard Graphics	1 x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1 x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 16 GB
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
I/O (Rear)	VGA USB3.2 Gen 2 10Gbps Type-A Keyboard / Mouse LAN port WiFi/Bluetooth Audio connector Flash BIOS Button DisplayPort HDMI™ USB 2.0 USB3.2 Gen1 5Gbps Type-A
Expansion Slots	1 x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 3 x PCIe 3.0 x16 slots, support PCIe x1 speed
USB (Front)	1 x (Gen 1, Type C) 2 x (Gen 1, Type A) 4 x USB 2.0
USB (Rear)	2 x (Gen 2, Type A) 2 x (Gen 1, Type A) 2 x USB 2.0
Internal Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 8 x SATA 6Gb/s connectors 2 x M.2 slots (M-Key) 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector 2 x USB 2.0 connectors 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 1 x 3-pin RAINBOW LED connector 1 x TPM module connector 1 x Clear CMOS jumper
Dimensions	9.60" x 9.60"
Manufacturer Warranty	3 Year
