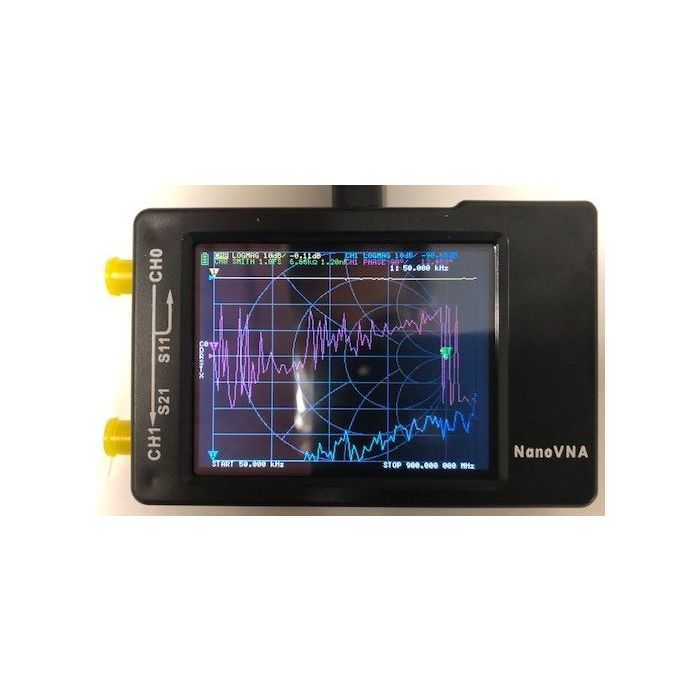

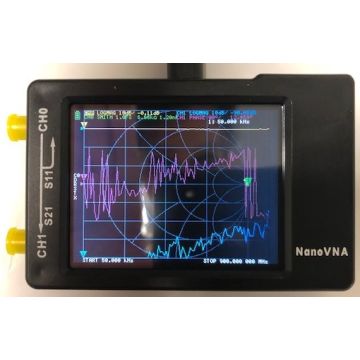

NanoVNA-H 50KHz to 900MHz Vector Network Analyzer with Touch-Screen Display

The NanoVNA is an open-source handheld 50KHz to 900MHz Vector Network Analyzer with Touch Screen Display. This model NanoVNA-H is a variant based on the original design by edy555 and validated by GigaParts to be one of the best production models available so that you can buy with confidence.

Now includes 1 Year Warranty

Note: Since this is an open-source product, support is not directly offered by GigaParts. Please refer to the many resources available online.

• PCB: 54mm x 85.5mm x 11mm (without connectors, switches)
• Measurement frequency: 50KHz -900MHz
• RF output: -13dbm (maximum -9dbm)
• Measurement range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz))
• Port SWR: < 1.1
• Display: 2.8 inch TFT (320 x 240)
• USB interface: USB type-C communication mode: CDC (serial)
• Power: USB 5V 120mA, built-in 400mAh battery, maximum charging current 8A
• Number of scanning points: 101 (fixed)
• Display Tracking: 4
• Marking: 4
• Setting Save: 5
• Frequency Tolerance: <2.5ppm
• Frequency Stability: <0.5ppm
