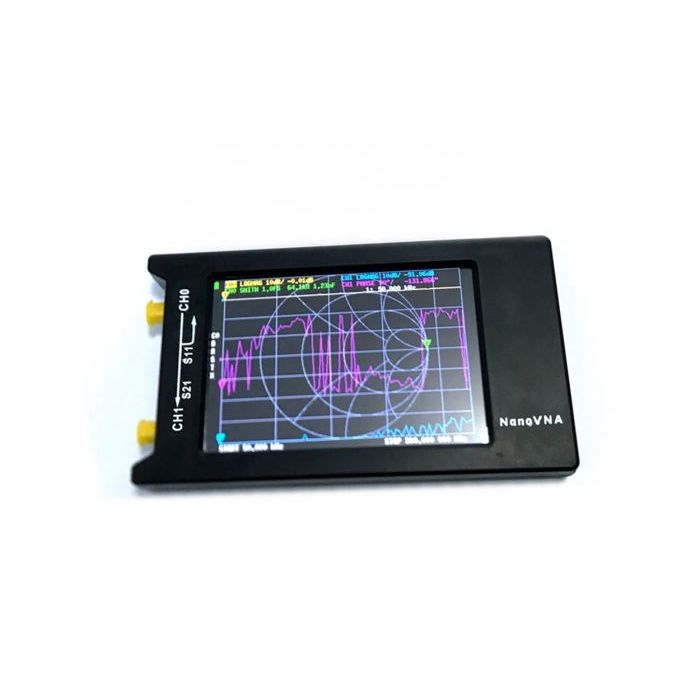

Open Box NANOVNA-H4 10KHz to 1.5GHz Vector Network Analyzer

Open Box NANOVNA-H4 10KHz to 1.5GHz Vector Network Analyzer. Tested and has lines on the display, does not affect performance...just visual

NOTE: SOLD AS-IS....NO RETURNS

NanoVNA-H4 10KHz to 1.5GHz Vector Network Analyzer with 4" Touch-Screen Display and 1950mAh Battery - 1 Year Warranty

The NanoVNA H4 is an open-source handheld 10KHz to 1.5GHz Vector Network Analyzer with Touch Screen Display. This model NanoVNA-H4 is a variant based on the original design by edy555 and validated by GigaParts to be one of the best production models available so that you can buy with confidence.

Now includes 1 Year Warranty

Note: Since this is an open-source product, support is not directly offered by GigaParts. Please refer to the many resources available online.

Measurement frequency: 10KHz - 1.5GHz
RF output: 0dbm
Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB (0.9G-1.5GHz))
*There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.
Port SWR: < 1.1
Display: 3.95 inch TFT (320 x 480)
USB interface: USB type-C communication mode: CDC (serial)
Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A
Number of scanning points: 101 (fixed)
Display Tracking: 4
Marking: 4
Setting Save: 5
Frequency Tolerance: <2.5ppm
Frequency Stability: <0.5ppm
