Open Box Powerwerx MPPT-150-14.6, DC-to-DC Solar Charger Controller for 12V LiFePO4 Batteries SN165240

Open Box Powerwerx MPPT-150-14.6, DC-to-DC Solar Charger Controller for 12V LiFePO4 Batteries SN165240

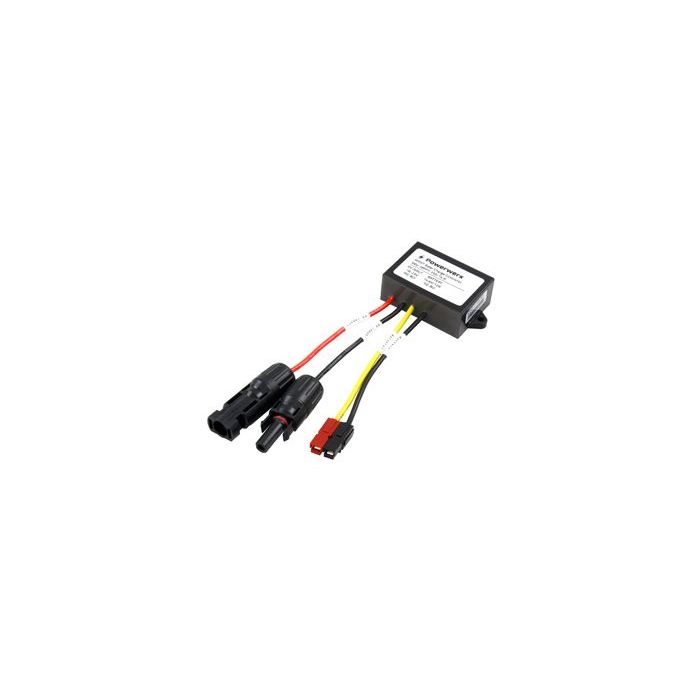

Powerwerx has launched MPPT-150-14.6 is a MPPT (maximum power point tracking) controller is a DC to DC solar converter. This unit is rated at 150 watts and converts higher solar panel voltages down to 14.6 VDC which is more suitable for charging LifePO4 type batteries. The solar input is pre-wired with MC4 style connectors. The output comes pre-wired with the popular Anderson Powerpole 30A connector.

Specifications:

Controller Technology: MPPT (Maximum Power Point Tracking) Technology
Input Voltage: 16-25 VDC
Output Voltage: 14.6 VDC
Input Connector Type: MC4
Output Connector Type: Anderson Powerpole 30A
Maximum Power: 150 Watts
Maximum Current: 12 Amps
Battery Type: Bioenno LiFePO4 or equivalent
System Type: 12 VDC (DC to DC converter)
Controls: Automatic (no user adjustments required)
Conversion Efficiency: 95%
IP Rating: IP67
Short Circuit Protection: Yes
Over Temperature Protection: Yes
Case: Die cast aluminum design allows for efficient heat dissipation
Dimensions: (L x W x H) 2.3 in. x 1.6 in. x 0.9 in. (58 mm x 40 mm x 22 mm)
Weight: 0.25 lbs. (115 g)
Warranty: 1 Year


NOTE: This solar controller is intended for used with Bioenno LiFePO4 or equivalent batteries. This controller should not be used with Flooded, AGM or GEL type batteries as it will overcharge them.
