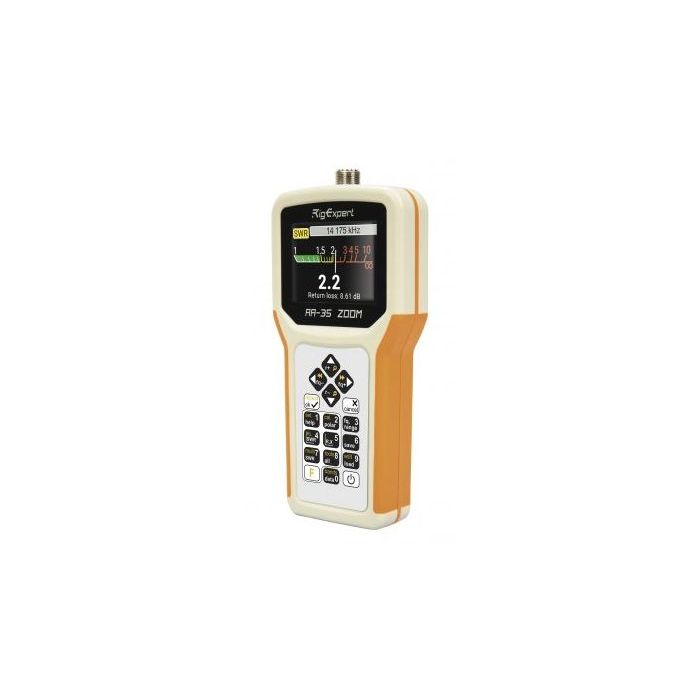

Open Box RigExpert AA-35 ZOOM S/N135003001

Open Box RigExpert AA-35 ZOOM S/N135003001. Analyzer tested by Tech Room and functions as designed.

Frequency range: 0.06 to 35 MHz

Frequency entry: 1 Hz resolution

Measurement for 25, 50, 75 and 100-Ohm systems

SWR measurement range: 1 to 100 in numerical modes,
1 to 10 in chart modes

SWR display: numerical or analog indicator

R and X range: 0…10000, -10000…10000 in numerical modes,
0…1000, -1000…1000 in chart modes

Display modes:
– SWR at single or multiple frequencies
– SWR, return loss, R, X, Z, L, C and phase angle at single frequency
– SWR chart, 100 points
– R, X chart, 100 points

Non Volatile memory:
– 10 slots to save measurement results

RF output:
– Connector type: UHF (SO-239)
– Output signal shape: square, 0.06 to 35 MHz
– Output power: +13 dBm (at 50 Ohm load)

Power:
– Two 1.5V alkaline batteries, type AA
– Two 1.2V Ni-MH batteries, type AA *
– Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
– When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources

Interface:
– 320×240 color TFT display
– 6×3 keys on the water-proof keypad
– Multilingual menus and help screens
– USB connection to a personal computer

Dimensions: 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in)

Operating temperature: 0…40 °C (32…104 °F)

Weight: 310 g (10.9 Oz) w/o batteries

Warranty: 2 years

GTIN-13: 4820185420099

RigExpert AA-35 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

* Batteries are not included with the analyzer.
