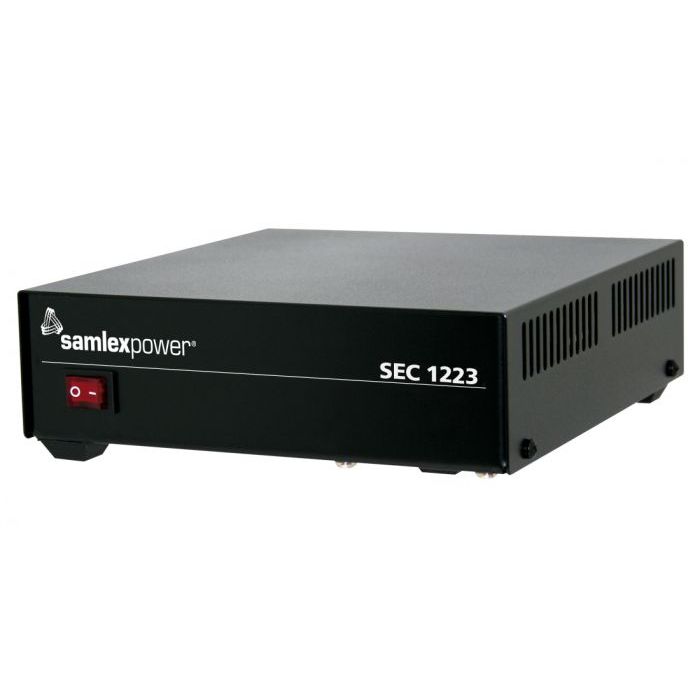

Open Box Samlex SEC-1223 23A Power Supply SN165514
Tested and works as designed...light scuffs on top of unit and missing original box
The ever-popular SEC-1223! Compare it to the 23A power supplies from Yaesu or Kenwood, and you will be amazed. Identical performance, identical finish and footprint... much lower price.
This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available). These advanced switch-mode DC power supplies were designed specifically for land mobile radio applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.
Features:
Advanced switch-mode technology
Reliable power with minimum weight and size
Circuit innovations minimize output voltage ripple and RFI
Input voltage can be set at 120VAC or 240VAC
UL listed to both USA & Canadian safety standards
Specifications:
Input: 100-130 VAC
Output: 13.8VDC
Amps: 23 Amps
Fuse: 6.3 Amps
Weight: 3.5 (lbs)
Weight 1.58 (kg)
Dimensions: 8.18 x 7.28 x 2.4 (in)
Dimensions: 20.8 x 18.5 x 6.1 (cm)
Safety: UL, FCC
Warranty: 3 Years
Applications:
Two way radio base stations
Communications systems
Security systems
Test equipment
Plotters
GPS receivers
Automotive & Marine displays
DC computers
12 Volt lighting systems
OEM applications
