Open Box Ubiquiti U7 Pro Max WiFi 7 Access Point

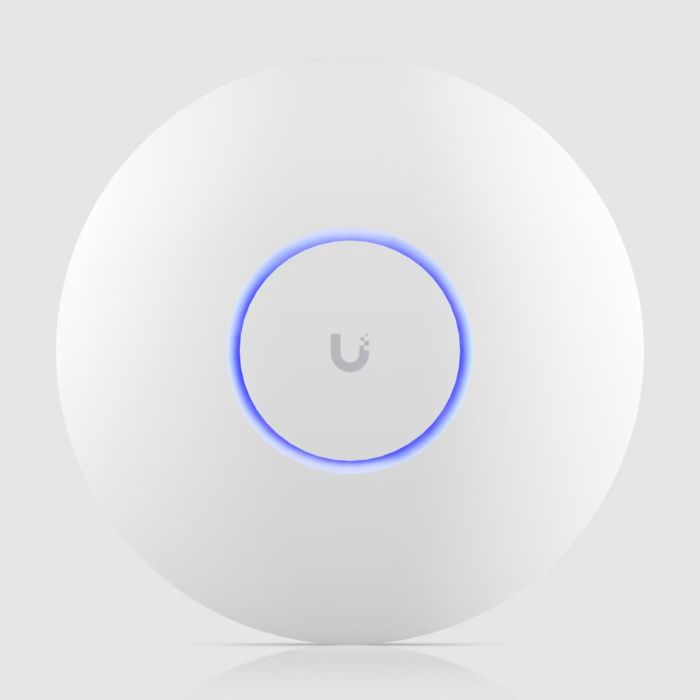

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
The U7 Pro Max is an elite WiFi 7 Access Point, engineered to deliver unparalleled wireless performance and interference-free connectivity in the most demanding, large-scale environments. This ceiling-mounted AP sets a new standard with its 8 spatial streams, robust 6 GHz support, and a dedicated spectral scanning engine for real-time analysis, ensuring optimal network health.
Experience the pinnacle of wireless connectivity with WiFi 7 (802.11be) standard and 8 spatial streams, supporting incredibly fast data rates up to 8.6 Gbps on the 5 GHz band (BW240), 5.8 Gbps on 6 GHz (BW320), and 688 Mbps on 2.4 GHz (BW40). The 6 GHz band provides crucial interference-free WiFi in supported regions. For details on regions supporting 6 GHz operation, please refer to the UI Help Article on 6 GHz Support. The Multi-Link Operation (MLO) capability is coming soon via a software update, promising even greater performance.
Beyond raw speed, the U7 Pro Max features a dedicated spectral scanning engine for real-time analysis, which requires UniFi Network version 8.2.93 or later. This ensures your network remains optimized and free from interference. Designed for extensive coverage, it can cover an area of 160 m² (1,750 ft²) and support over 500 clients, making it ideal for high-density deployments. A 2.5 GbE uplink provides ample backhaul for high-speed wireless traffic.
Advanced network management features include Wireless Meshing, Band Steering, 802.11v BSS Transition Management, 802.11r Fast Roaming, and 802.11k Radio Resource Management (RRM). Comprehensive guest management options such as Passpoint (Hotspot 2.0) and a customizable Captive Hotspot Portal are available. Robust security features like Guest Network Isolation, Private Pre-Shared Key (PPSK), WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RADIUS over TLS (RadSec), and Dynamic RADIUS-assigned VLAN provide granular control.
The U7 Pro Max supports both ceiling and wall mounting, with a Pro Mount included. It is powered by PoE+, with a maximum power consumption of 25W. Its durable polycarbonate and aluminum enclosure, coupled with a stainless steel mount, ensures reliability in an extended ambient operating temperature range of -30 to 50° C (-22 to 122° F). This device is NDAA Compliant and holds certifications from CE, FCC, IC, and Anatel.
Key Features:
- WiFi Standard: WiFi 7 (802.11be) for ultimate performance.
- Spatial Streams: 8 spatial streams for maximum throughput.
- 6 GHz Support: Provides interference-free WiFi in supported regions.
- Dedicated Spectral Scanning Engine: Enables real-time spectral analysis for network optimization (requires UniFi Network 8.2.93+).
- Multi-Link Operation (MLO): Capability coming soon via software update.
- Extensive Coverage: Covers 160 m² (1,750 ft²) and supports 500+ clients.
- High Data Rates: Up to 8.6 Gbps (5 GHz), 5.8 Gbps (6 GHz), 688 Mbps (2.4 GHz).
- 2.5 GbE Uplink: Ensures high-speed network connectivity.
- Flexible Mounting: Supports Ceiling and Wall mounting (Pro Mount included).
- PoE+ Power: Simplifies installation with Power over Ethernet Plus.
- Advanced Radio Management: Features Wireless Meshing, Band Steering, Fast Roaming (802.11r), BSS Transition Management (802.11v), and RRM (802.11k).
- Comprehensive Guest Management: Includes Passpoint (Hotspot 2.0) and a customizable Captive Hotspot Portal.
- Enhanced Security: Offers Guest Network Isolation, PPSK, WiFi Speed Limiting, Client Device Isolation, WiFi Schedules, RadSec, and Dynamic RADIUS-assigned VLAN.
- Extended Operating Temperature: Functions reliably from -30 to 50° C (-22 to 122° F).
- Durable Design: Robust polycarbonate and aluminum enclosure with stainless steel mount.
- NDAA Compliant: Meets high security and supply chain standards.
- Certifications: CE, FCC, IC, Anatel certified.
