Open Box XPA-125B 125W HF Amplifier for Xiegu X510 S/N:X02D19410073

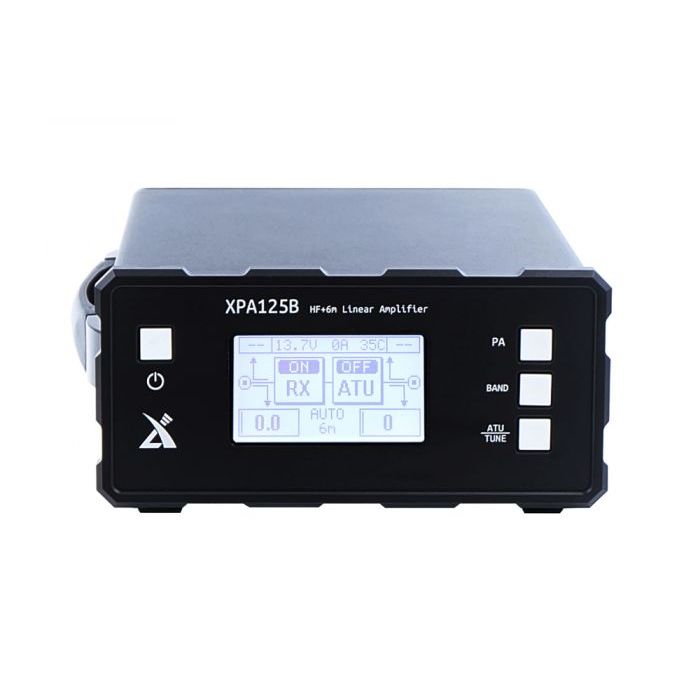

XPA-125B 125W HF Amplifier for Xiegu X510
125W HF Amplifier for Xiegu X5105 transceiver.
The XPA-125B is the perfect amplifier for a 5 watt transmitter when 100 watt output is needed. Its maximum power output is 125 watt.
The automatic Antenna Tuner Unit and power amplifier unit of XPA-125 can be used independently of each other as either an automatic antenna tuner or a separate power amplifier. The tuner can handle 14-500 ohm loads in the HF bands 1.8-30 MHz and 6 meter band 50-54 MHz.
Has Automatic Band selection as well as manual to make it the perfect amp for the X5105 or the X108G.
The large back lit LCD display shows input/output power, SWR, Voltage, Current, Temperature, amplifier status as well as warning messages making operation of this modern amplifier simple and also user friendly.
The serial connection allows you to hook it up the the computer to update the firmware.
XPA125 Specifications:
Frequency range: 0.5-54 MHz
Maximum output power: 1.8-30 MHz >110W / 50MHz >90W
Maximum ambient operation temp: 131 Fahrenheit(55 Celsius)
Gain: 13 dB (+/-2dB)
Spurious suppression: >50 dB
Supply Voltage: 12-15 Volt DC
Transmit current draw: @ max output 30A
Receive current draw: @ max 700 mA
ATU Frequency range: 1.8-30 MHz & 50-54 MHz
ATU Tuning range: 14-500 Ohm
Dimensions: 10.3 x 6.3 x 2.8 inches (Excluding knobs, feets, handle etc)
Weight: 5.86 lbs(Shipping weight 8.82 lbs)
