Open Box Yaesu G-1000DXA Rotor S/N: 2C830023

Open Box Yaesu G-1000DXA Rotor S/N: 2C830023

Tested and works as designed

Heavy Duty Deluxe - 450 Degree Turning Radius w/Pre-set, 23 Sq. Ft. (Rotor Diameter 7 1/2 in, Rotor Height 12 1/2 in, Mast Diameter 1 1/2 - 2 1/2 in)

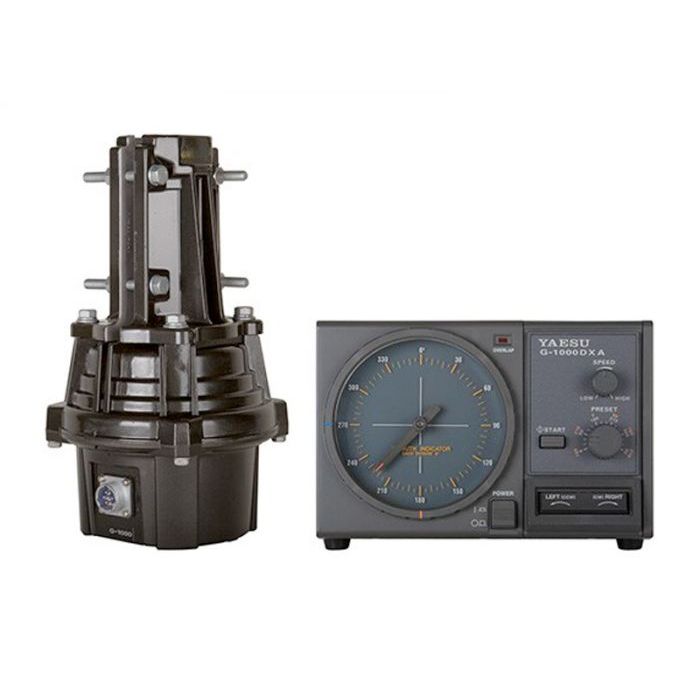

The Yaesu G-1000DXA is a great antenna rotator for rugged applications with a wind load of 23 sq. ft. and a vertical load of 440 lbs. This antenna rotator features a rotation range of 450 degrees (with presets) and offers hands-free rotation during busy operations with preset controls. The G-1000DXA also comes equipped with a compass display in which the stop may be set for North or South.

Specifications:
-Wind Load: 2.2
-K-Factor: 230
-Stationary Torque: 6,000 kg/cm
-Rotation Torque: 1,100 ~ 600 kg/cm
-Max. Vert. Intermittent Load: 200 kg
-Backlash: 1°
-Mast Size: 38 - 63 Ø
-360° Rotation Time: 40 - 100 sec
-Rotator Diameter x Height: 186 Ø x 300
-Weight: 3.5 kg
-Cable Requirement: 6
