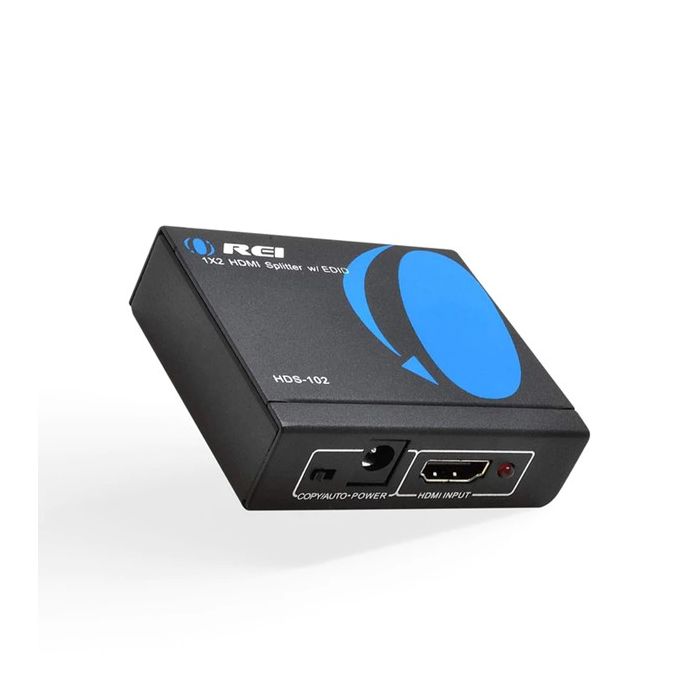

OREI 1x2 HDMI v1.3 Powered Splitter with 4K Support

USB Powered - (includes USB cable and power adapter included)

Split one HDMI input signal to two HDMI output signals identical to the input signal

Input: 1x HDMI & Outputs: 2x HDMI

EDID management switch – Set on COPY to copy the supported audio signal from HDMI output 1 to the HDMI output 2 display. Set on AUTO to automatically detect and send the same audio signal supported by both displays.

Supported resolution: up to 4K/30Hz, 1080p, 720p, VGA to WUXGA

Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, essentially all available audio options are supported

Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation

Compact in size

Easy plug & play installation

HDCP Compliant

Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty

The purpose of this HDMI splitter is display single HDMI source such as a set top box, dvd player or game console to up to two HDMI displays.

Please note that this splitter will duplicate the source to the two output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and same goes with the audio signal. We recommend using this splitter with high quality HDMI cables 30 feet or less.

• Input Ports: 1 x HDMI Female

  Output Ports: 2 x HDMI Female

  1 HDMI input signal split to 2 HDMI sink devices

  HDCP 1.4 protocol compliant

  3D HDMI 1.4a video format support

  3D video support including frame packing for all 3D formats up to a 297MHz TMDS clock

  Digital audio format, as DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD

  Support display resolutions up to 1080P@60Hz - 3D

  Support deep color 30bit, 36bit, 48bit per pixel

  Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

  Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

  ESD Protection: Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)

  Relative Humidity: 20 ~ 90% RH (Non-condensing)

  Frequency Bandwidth: 2.97Gbps

  Dimensions (mm): 60(W) X 70 (D) X 20 (H)

  Weight: 125g

  Power Consumption (Max): 5W

OREI HDS-102 Splitter

DC power supply to USB cable

Power adapter

Instruction manual
