Palomar Engineers Deluxe RFI Reduction Kit for FT-DX10 - RFI-YAESU-FTDX-10DLX

This kit will help reduce or eliminate:

1. Radio Frequency Interference (RFI) to electronic devices including audio/video systems, computers, telephones, garage door openers, alarm systems, and home appliances, in your house or your neighbor’s house.
2. RFI from other electronic devices such as switching power supplies, LED and fluorescent lights, battery chargers, Ethernet cables, solar systems, kitchen appliances, and cable/satellite TV systems which generate common mode currents on your radio cables.
3. These filters help cure SWR problems between transceiver and a linear amp and between transceiver and antenna tuner or direct to antenna. The DC power line filter helps keep common mode current out of the power line which could cause interference to other devices connected to the same power source.

These filters use a ferrite core material that is effective in suppressing RFI from transmitters and receivers experiencing a high noise floor in the 1-300 MHz range. DC filter effective for .15-10 MHZ and CMNF-500-50 effective from 1-60 MHz range. Snap on filters effective from 1-300 MHz.

The ferrite split beads and ring filters are easy to use, don’t require modification of the protected equipment and work in almost all cases, even when plug-in filters fail.

Kit Includes

• a low frequency noise reduction ring filter (works great on DC switching power supplies too!) for AC/DC power
• 4 snap on filters (1/2" ID) for I/O cables

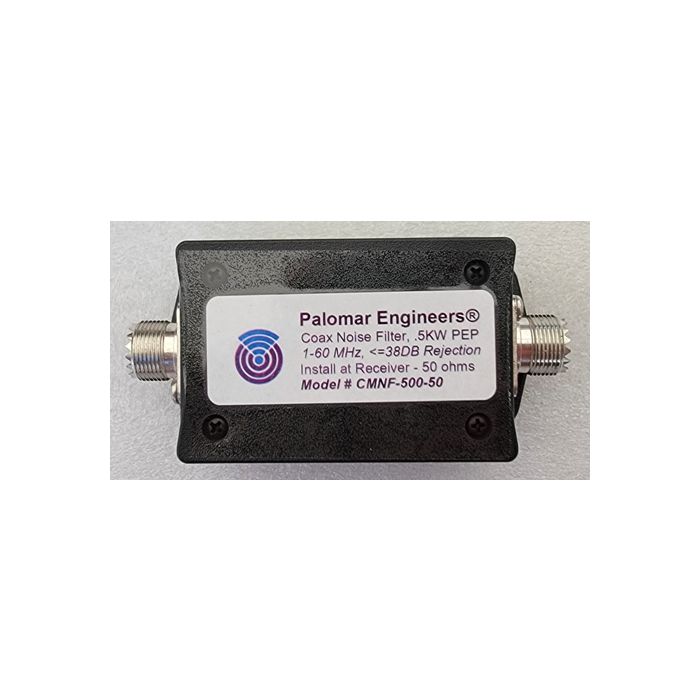

• the CMNF-500-50 coax noise filter and double male barrel connector for direct attachment to your radio antenna connector. The CMNF-500-50 provides up to 38 dB (6 "S" units) of common mode noise attenuation. Snap on ferrites may be either 4 or 6 sided depending on inventory - they have identical electrical properties.

This kit features quick installation - immediate RFI/noise reduction. No radio mods required.

For additional RFI suppression, use a feed line choke (like the MC-1-500 for 500 watts or the MC-1-1500 for powers up to 1.5KW PEP) at the antenna feed point to suppress common current on the coax feed line during transmit.
