Palstar 1000W Dummy Load was born out of the need for a dummy load that allows for more time to tune your amp at high power. Most dummy loads don't have the real world power load capability needed by Ham operators who run high-power amplifiers.

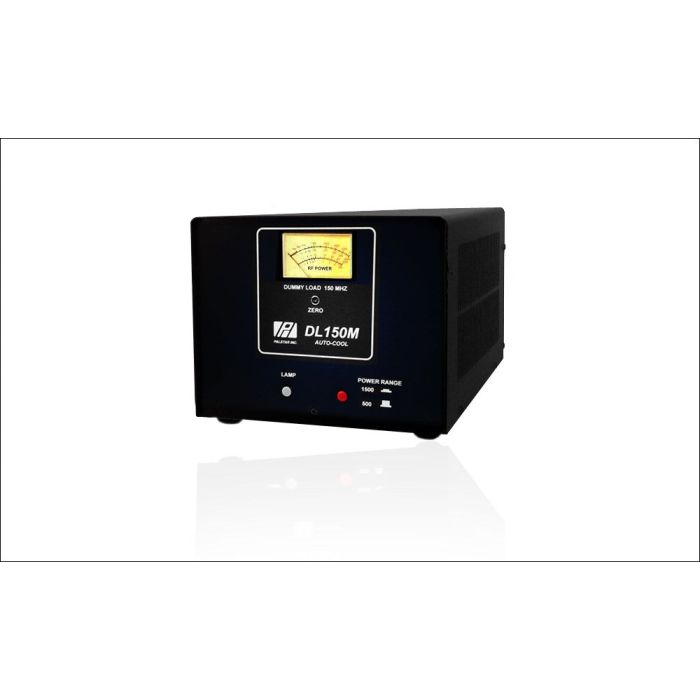

 The Next-Generation Palstar DL150M Dummy Load for amateur radio can handle up to 1000 watts for up to 1 minute, 600 watts for 5 minutes, and 300 watts 100% duty cycle. The DL150M has thermostatically-controlled dual fan cooling, so the fans only run when needed.
Power rating:1000 Watts for 1 min
• 100°C temp max power
• 125°C power -50%
• 150°C power -100%
• 600 watts for 5 mins
• 300 watts 100%
Frequency Range:1 to 150 MHz
Cooling:Dual 240 cfm thermostatically controlled fans
Fan turns on @ 45°C
Impedance:50 Ohms +/-5%
SWR:Better than -20 dB R/L @ 1 - 150Mhz
Connector:SO-329 Coax Input Connector
Metering:Internal wattmeter and analog metering
Meter power range:0-500 Watts/
0-1000 Watts
Power cable:3pin Amphenol DC Included (USA Only)
Chassis:.090 ga. aluminium iridite coated
Top cover:.090 ga. aluminium powder coated
Front cover:.090 ga. aluminium powder coated
Dimensions:9" wide x 7" high x 14" deep
Shipping weight:14 lbs (6.4 Kg)
