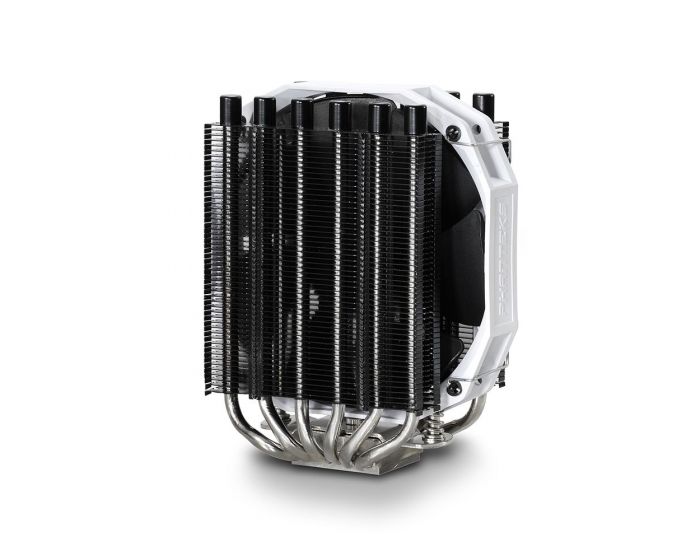

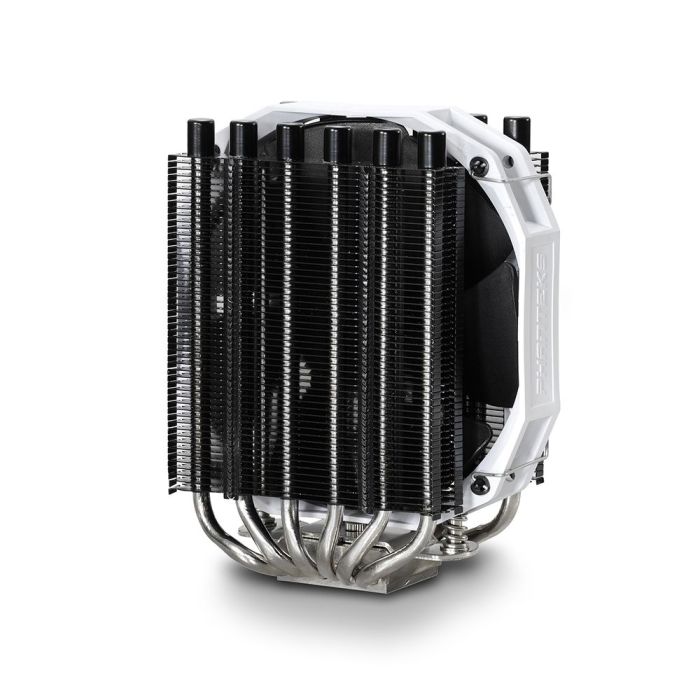

Phanteks PH-TC14S

Add to Wish List

No Longer Available

Check Store Stock


Las Vegas:

Distribution Center:

Phanteks’ PH-TC14S incorporates the dual tower design and performance of the PH-TC14PE but in a slimmer form. The new slim form eliminates the possibility of incompatible RAM and the motherboard’s heatsink height. PH-TC14S’s Six 6mm heat-pipes are linearly aligned and developed to have the least amount of air and thermal resistance and allows for optimal heat diffusion on fins for faster cooling.PH-TC14S includes PH-F140HP PWM ultra high static pressure Premium fans with new PH-F140HP fan blade design and allows for expansion to three PH-F140HP or any other 12025 fan for higher performance and/or silent operation.
Model No: PH-TC14S
UPC Code: 886523000617

Material Copper (Base and Heat-pipes), Nickel Plated
Aluminum Cooling Fins with patented P.A.T.S.

Fan Model PH-F140HP

Warranty 5 Years

Heatsink Dimension (LxWxH) without fan 4.1x2.9x6.1 inches
Heatsink Dimension (LxWxH) with fan 5.6x2.9x6.3 inches
Heatsink Weight without fan 1.23 lbs
Heatsink Weight with fan 1.63 lbs

Compatability - Intel Socket LGA 2011/115X/1366/775
AMD FM1/FM2/AM3+/AM3/AM2+/AM2 (stock back-plate required)
1x PH-TC14S
1x PH-F140HP PWM Premium Fan
1x SoliSku Mounting kit for Intel and AMD(Stock backplate required)
1x PH-NDC Thermal Compound
1x Phanteks PH-TC14S User’s Manual
4x Rubber Bar
4x Fan Clips
