Just what you need for your most ambitious projects!
Mount Arduino UNO or Mega. Use with any board with the same configuration. The Arduino MEGA attaches to this Slide with four screws only, and has a partial overhang.
Made to fit the Phase Dock WorkBench open-standard matrix. Use with any WorkBench Base.
User's Guide: Click HERE for instructions and information. Contents include:
- Phase Dock 1007 WorkBench Starter Project Development Kit
- Attach Click™ Connectors to the WorkBench Base
- Electronics Mounting Guidelines
- Click/Slide Assembly
- Care and Cleaning of the WorkBench Base and Cover

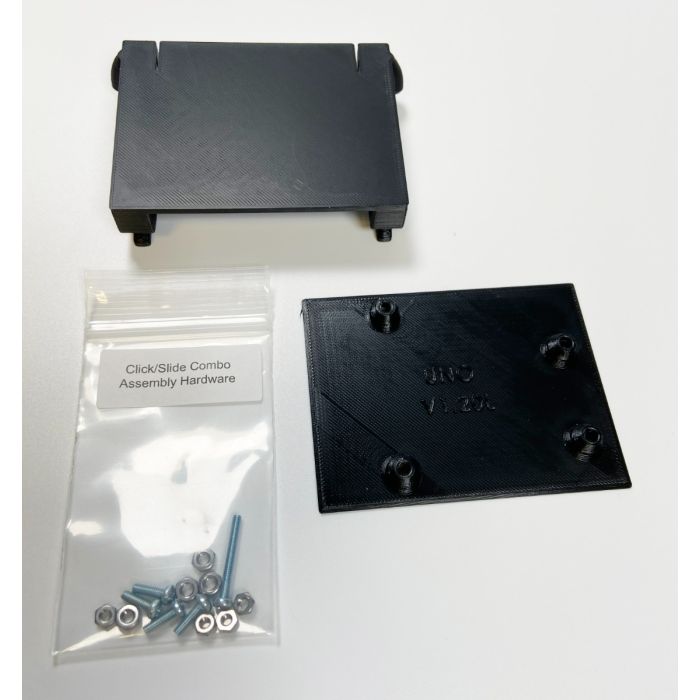

Arduino UNO Slide: 2.53” x 3.36” (64.3mm x 85.4mm)
2x3 Click: 2.53” x 3.35” (64.33mm x 85.4mm)
Hardware Packet:
- 4 M2.5 hex nuts
- 4 M3.0 hex nuts
- 4 M2.5 x 8 machine screw
- 1 M2.5 x 20 machine screw (as an insertion tool)
Arduino UNO Slide: 2.53” x 3.36” (64.3mm x 85.4mm) Qty 1
2x3 Click: 2.53” x 3.35” (64.33mm x 85.4mm) Qty 1
Hardware Packet: Qty 1
- 4 M2.5 hex nuts
- 4 M3.0 hex nuts
- 4 M2.5 x 8 machine screw
- 1 M2.5 x 20 machine screw (as an insertion tool)
