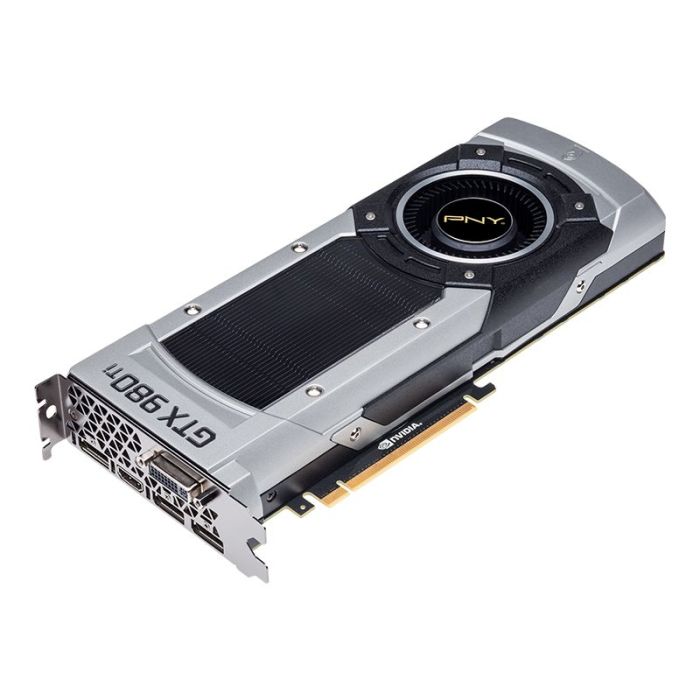

PNY GeForce GTX 980Ti 6GB GDDR5 Graphics Card, Reference Specifications, PCI-e 3.0
Gear up for next-gen gaming with the GeForce® GTX™ 980 Ti.
The most powerful two letters in the world of GPUs. When paired with our flagship gaming GPU–GeForce GTX 980–it gives you incredible new levels of performance and capabilities. GTX 980 Ti is accelerated by the groundbreaking NVIDIA Maxwell™ architecture to deliver an unbeatable 4K and virtual reality experience. With 2816 NVIDIA® CUDA® cores and 6 GB of memory, it has the horsepower to drive whatever comes next.
NVIDIA®CUDA®Cores 2816
Base Clock (MHz) 1000
Boost Clock (MHz) 1075
Memory Clock (Gbps) 7.0
Memory Amount 6GB GDDR5
Memory Interface 384-bit
Memory Bandwidth (GB/sec) 336.5
Texture Fill Rate (GigaTexels) 176
Multi-Screen 4
Max Resolution 4096x2160 (Digital)
Power Input One 8-Pin + One 6-Pin
Bus Type PCI-Express 3.0 x16
Length 10.5 In
Height 4.376 In
Width Dual-slot
Requirements
- PCI Express-compliant motherboard with one double-width x16 graphics slot
- One 8-pin and One 6-pin PCI Express supplementary power connectors
- Minimum 600 W or greater system power supply (with a minimum 12 V current rating of 42 A)
- 300 MB of available hard-disk space
- 2 GB system memory (4 GB or higher recommended)
- Microsoft Windows 8, Windows 7, or Windows Vista Operating System (32 or 64-bit)
- DVD-ROM drive or Internet connection
Key Features
- 6GB GDDR5 Memory
- NVIDIA Maxwell™ technology
- NVIDIA Dynamic Super Resolution technology
- NVIDIA GameWorks™ technology
- NVIDIA GameStream™ technology1
- NVIDIA G-Sync™ - Ready2
- NVIDIA SHIELD™ - Ready
- Microsoft DirectX 12
- NVIDIA GPU Boost 2.0
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround™ technology
- Support for four concurrent displays including: Dual-link DVI, HDMI, Three DisplayPort 1.2
- NVIDIA SLI® - Ready
- NVIDIA CUDA Technology
- PCI Express 3.0 support
- OpenGL 4.4 & OpenCL™ support
