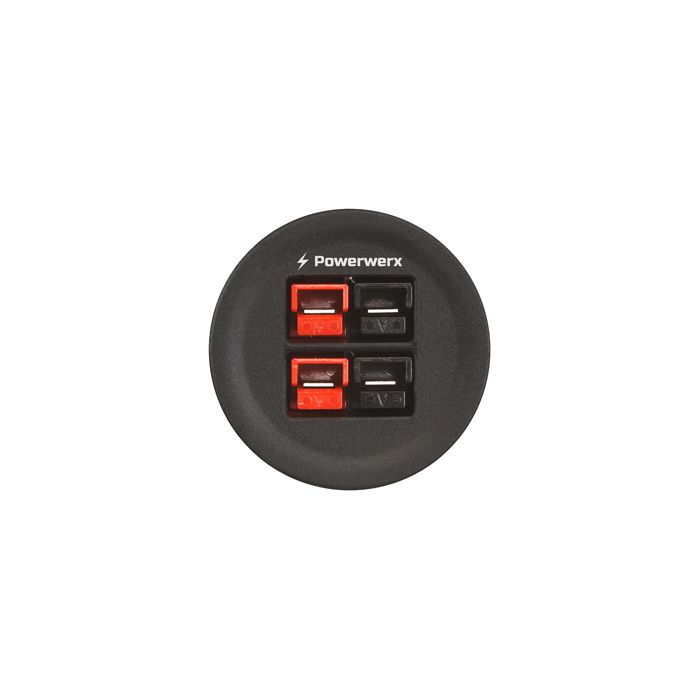

Powerwerx PanelPole, Panel Mount Housing for Two Powerpole Connectors with a Weather Resistant Cover
Easily add Powerpole outputs to your dashboard, go-box, panel or chassis. Weather resistant rubber cover protects & seals connectors when not in use. High output capacity of up to 45A on each Powerpole. Includes (4) 30A contacts. Fits 1-1/8" dia. hole.
The only weather resistant panel mount housing for 15/30/45 amp Powerpole connectors. Fits any 1-1/8" diameter hole and secures via a rear threaded nut. Easy add high power (up to dual 45A) outputs on your dashboard, go-box, panel or chassis.
Connections 2 Powerpole Connectors
Compatibility Mates with all 15, 30 & 45 amp Powerpole connectors
Maximum Voltage 58VDC
Maximum Amperage Up to 45A each Powerpole (continuous)
Mountable 1-1/8" diameter standard panel mounting hole.
Includes Includes (2) Powerpole Red/Black housings, (4) 30A Powerpole Contacts, (1) Retaining Pin (pre-installed), (1) Rubber Weather Resistant Cover, (1) Threaded Locking Nut
