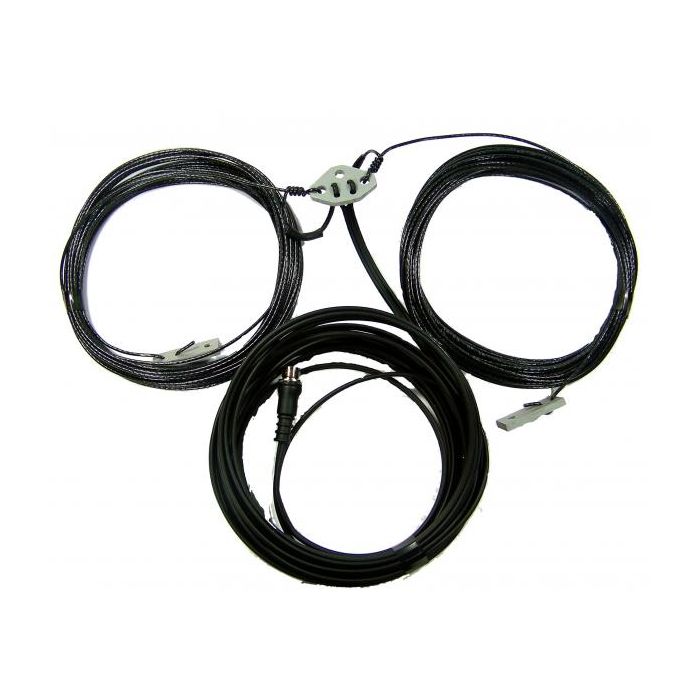

Radiowavz 80-6 Meter G5RV Wire Antenna with 450ohm Twinlead 102ft - G5RV-E

Key Features

• Measures 102 feet across the top for use on 80 meter - 6 meter frequencies.
• Is fed in the center through a 450 ohm twin lead feed-stub.
• Can be easily matched on all-bands from 80 meters through 6 meters with a good antenna tuner.
• An antenna tuner is required to make this antenna work on multiple bands.

External Tuner Required

The G5Rv With Its Special Feeder Configuration, Makes It A Center Fed Multiband Antenna. It Is Capable Of Working Efficiently On All Ham Bands From 3.5 To 28Mhz With A Matching Tuner!

The G5Rv Was Originally Designed To Work In Emergency And Remote Locations. It Has Become One Of The Staple Antennas In The Ham World

The Radiowavz G5RV antenna measures only 102 feet across the top for 80 meter - 6 meter operation. It is fed at the center through a low loss 450 ohm twin lead feed-stub. The interaction between the radiating section and the feed-stub makes the G5RV usually easy to match on all-bands from 80 meters through 6 meters with good antenna tuner. (An antenna tuner is required to make this antenna work on multiple bands).

The twin lead portion of this antenna is approximately 32ft.
