RAM Twist-Lock Pivot Suction for 12" Tablets

RAM Twist-Lock Pivot Suction for 12" Tablets

Want to be able to Monitor APRS feeds and other digital modes, DX spotting, Online LogBook and more?  You need a tablet when operating mobile, and RAM has a mount that can hold your tablet out of the way but where you can see it.

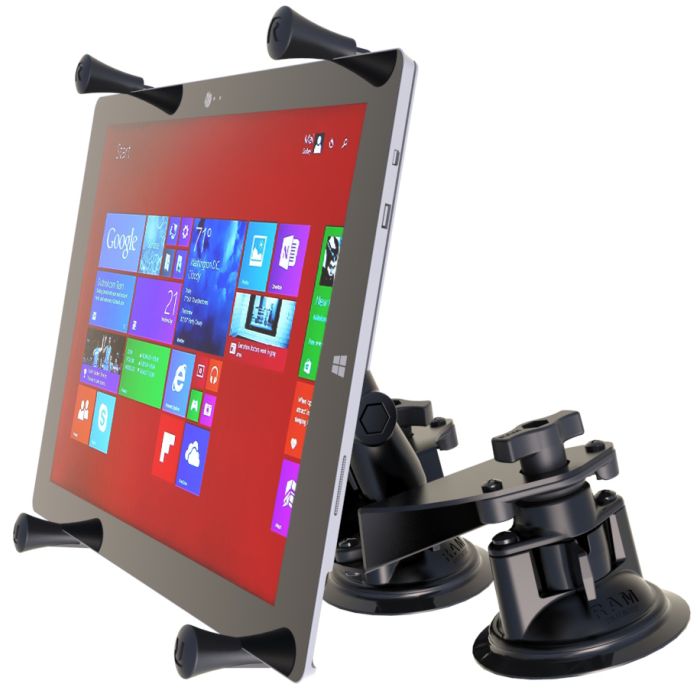

The RAM-B-189-PIV1-UN11U consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal X-Grip® cradle for 12" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Cradle Dimensions:

Minimum Width = 7.25”

Maximum Width = 8.75”

Maximum Length (WITHOUT additional supports) = Unlimited

Maximum Length (WITH additional supports) = 10.25”

Depth = 0.875"

The RAM-HOL-189-PIV1-UN11U is compatible with the iPad Pro WITHOUT CASE ONLY.

Material:

High Strength Composite & Powder Coated Marine Grade Aluminum

Ball Size:

B Size 1" Rubber Ball

Note:

The "U" in the part number reflects product packaged in poly bag.

Weight:

2.45 lbs.
