Raspberry Pi 83-16552RK
Raspberry Pi 2 Model B Starter Kit
The updated Pi 2 Model B design is based around a Broadcom BCM2836 SoC, which includes an Quad Core ARM7 900 MHz processor, VideoCore IV GPU, and 1 Gigabyte of RAM. This revision Pi 2 Model B board features four mounting holes for easy installation, a built-in reset circuit, and can be powered via the USB data ports. The design does not include a built-in hard disk or solid-state drive, instead relying on an microSD card for booting and long-term storage. This board is intended to run Linux kernel based operating systems.
The Raspberry Pi uses Linux-kernel based operating systems. The Raspberry Pi does not come with a real-time clock, so an OS must use a network time server, or ask the user for time information at boot time to get access to time and date info for file time and date stamping. However a real time clock (such as the DS1307) with battery backup can be easily added via the I2C interface.
Board Specifications
Processor: ARM 900Mhz CPU
USB: Four USB 2.0 Ports
Ethernet: 10/100 Ethernet Port
Video Output: HDMI and Composite
Sound: L/R Stereo
Memory: 1GB Ram
Operating System: Uses microSD card slot to load O/S
Digital interfaces: 2 onboard ribbon slots for Camera and Display
GPIO: 40 GPIO pins, backwards compatible to B board
Case Specifications
2 piece tool-less design snaps together
Supports Pi Camera modules
Two mounting slots designed for mounting on a wall

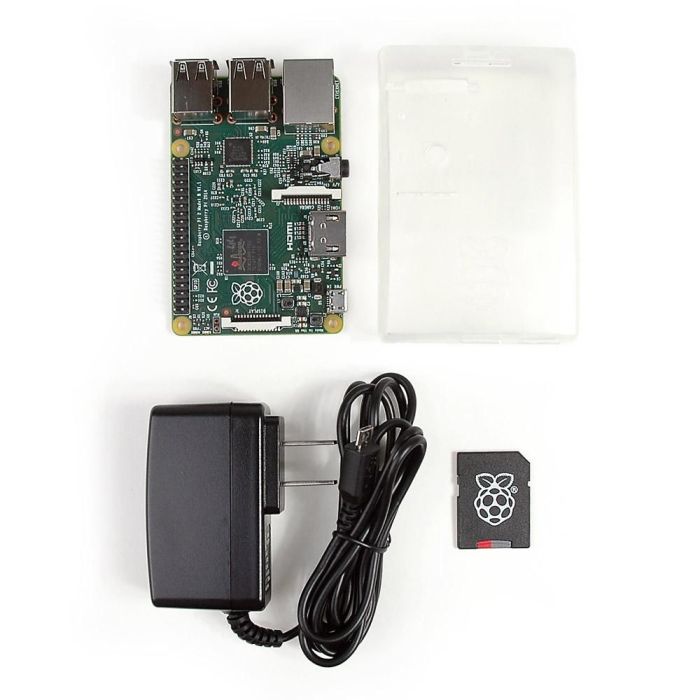

Kit Includes
Raspberry Pi 2 Model B Board
Multicomp Clear Pi 2 Model B Case
8GB Operating System microSD Card
Raspberry Pi Power Supply
36 Page Raspberry Pi User Guide
The updated Pi 2 Model B design is based around a Broadcom BCM2836 SoC, which includes an Quad Core ARM7 900 MHz processor, VideoCore IV GPU, and 1 Gigabyte of RAM. This revision Pi 2 Model B board features four mounting holes for easy installation, a built-in reset circuit, and can be powered via the USB data ports. The design does not include a built-in hard disk or solid-state drive, instead relying on an microSD card for booting and long-term storage. This board is intended to run Linux kernel based operating systems.
The Raspberry Pi uses Linux-kernel based operating systems. The Raspberry Pi does not come with a real-time clock, so an OS must use a network time server, or ask the user for time information at boot time to get access to time and date info for file time and date stamping. However a real time clock (such as the DS1307) with battery backup can be easily added via the I2C interface.
Board Specifications
Processor: ARM 900Mhz CPU
USB: Four USB 2.0 Ports
Ethernet: 10/100 Ethernet Port
Video Output: HDMI and Composite
Sound: L/R Stereo
Memory: 1GB Ram
Operating System: Uses microSD card slot to load O/S
Digital interfaces: 2 onboard ribbon slots for Camera and Display
GPIO: 40 GPIO pins, backwards compatible to B board
Case Specifications
2 piece tool-less design snaps together
Supports Pi Camera modules
Two mounting slots designed for mounting on a wall
Kit Includes
Raspberry Pi 2 Model B Board
Multicomp Clear Pi 2 Model B Case
8GB Operating System microSD Card
Raspberry Pi Power Supply
36 Page Raspberry Pi User Guide
